Description
xSPECIFICATIONS
Appearance Size (L*W*H): 149 *93 *28 mm
Brand Name: ANDDEAR
Certification: CE,FCC, ce
Communication Mode: Full-Duplex
Function: POE,POE
Hign-concerned Chemical: None
Lightning Level: ±4KV

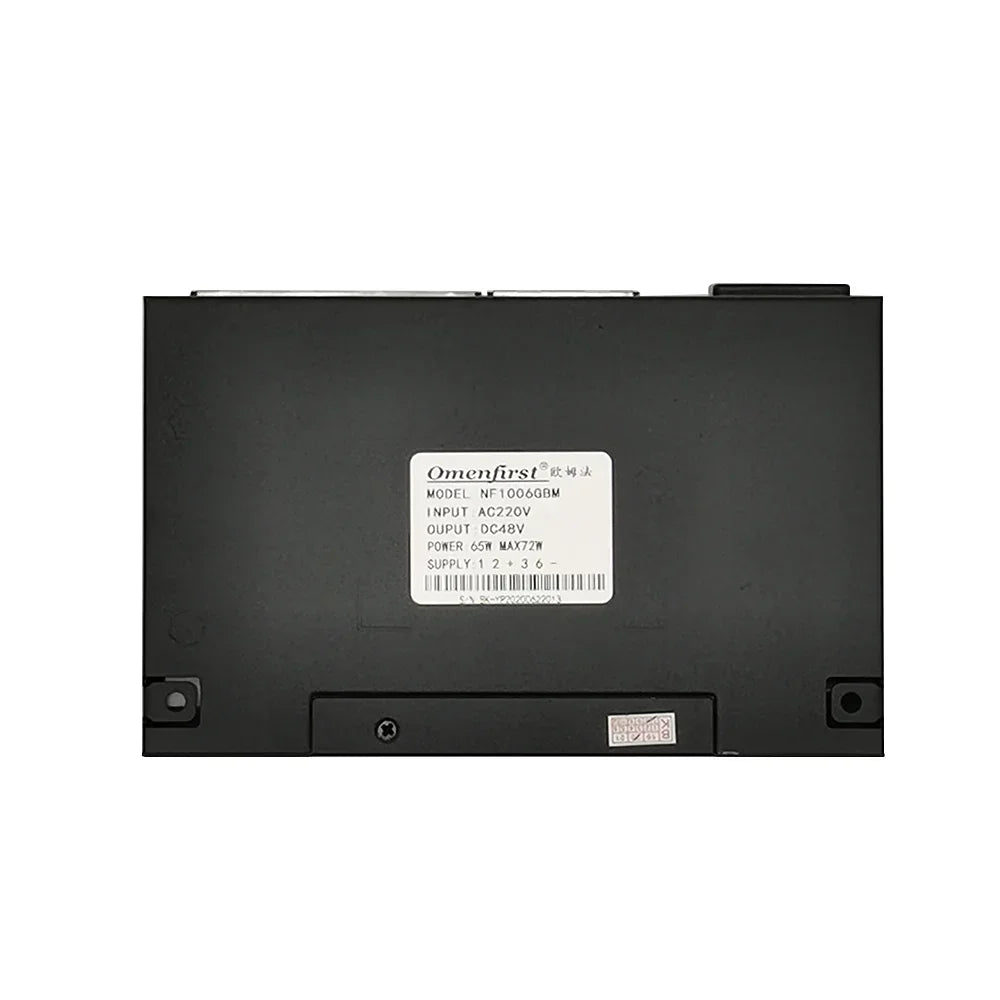

Model Number: NF1006GBM
Origin: Mainland China
Place of Origin: China
PoE Ports: Port 1-4
PoE port output: Maximum 15.4 W/30W
Ports: ≤ 8
Power supply: 56W MAX72 W
Products Status: Stock
Storage temperature: -40 ℃ - 70 ℃
Switch Capacity: 1.6 G
Transmission Rate: 10/100Mbps
Type of forwarding: Storage forwarding
Working temperature: 0 ℃ -40 ℃
authentication: CE FCC
key words: switch poe

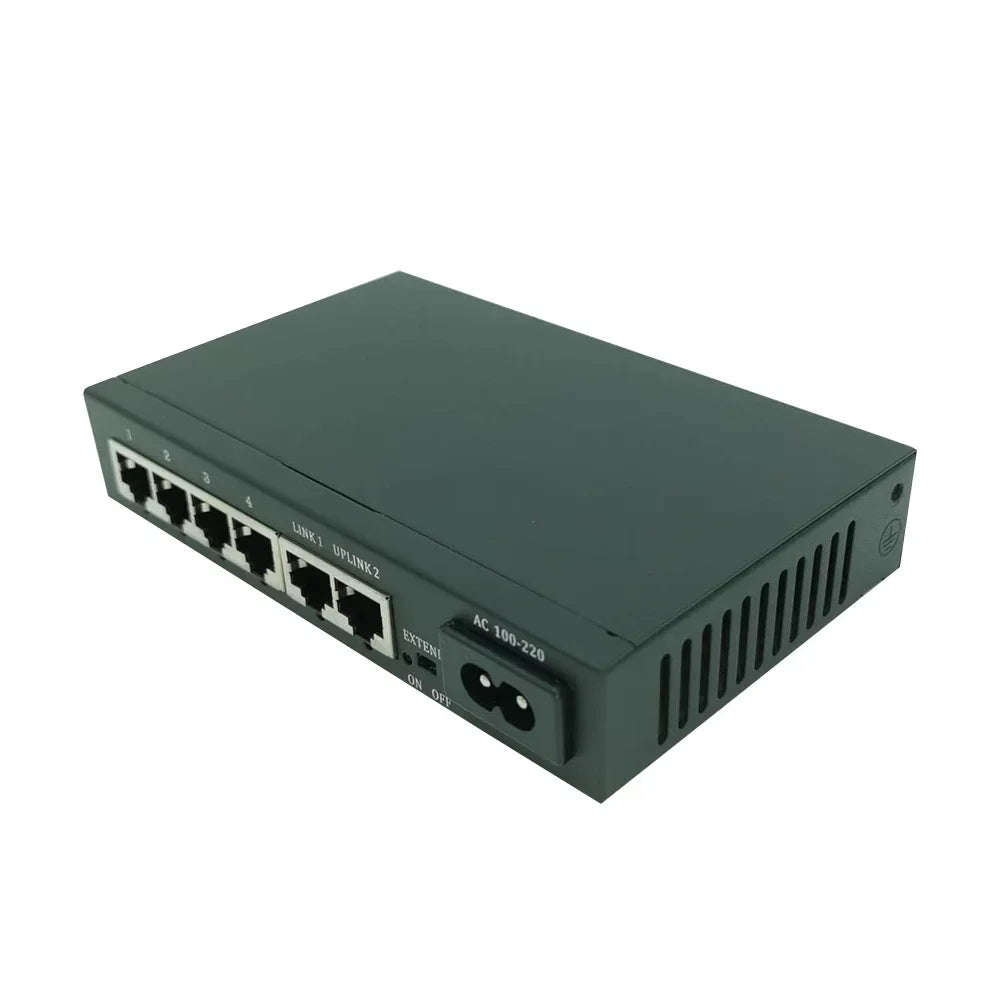

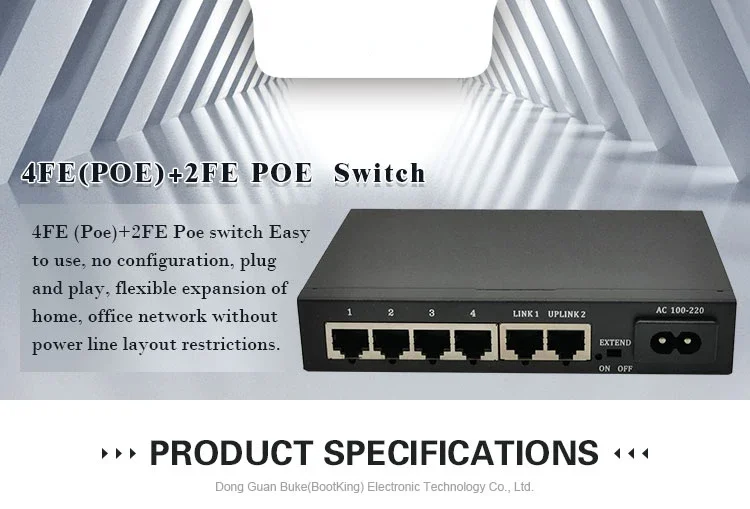

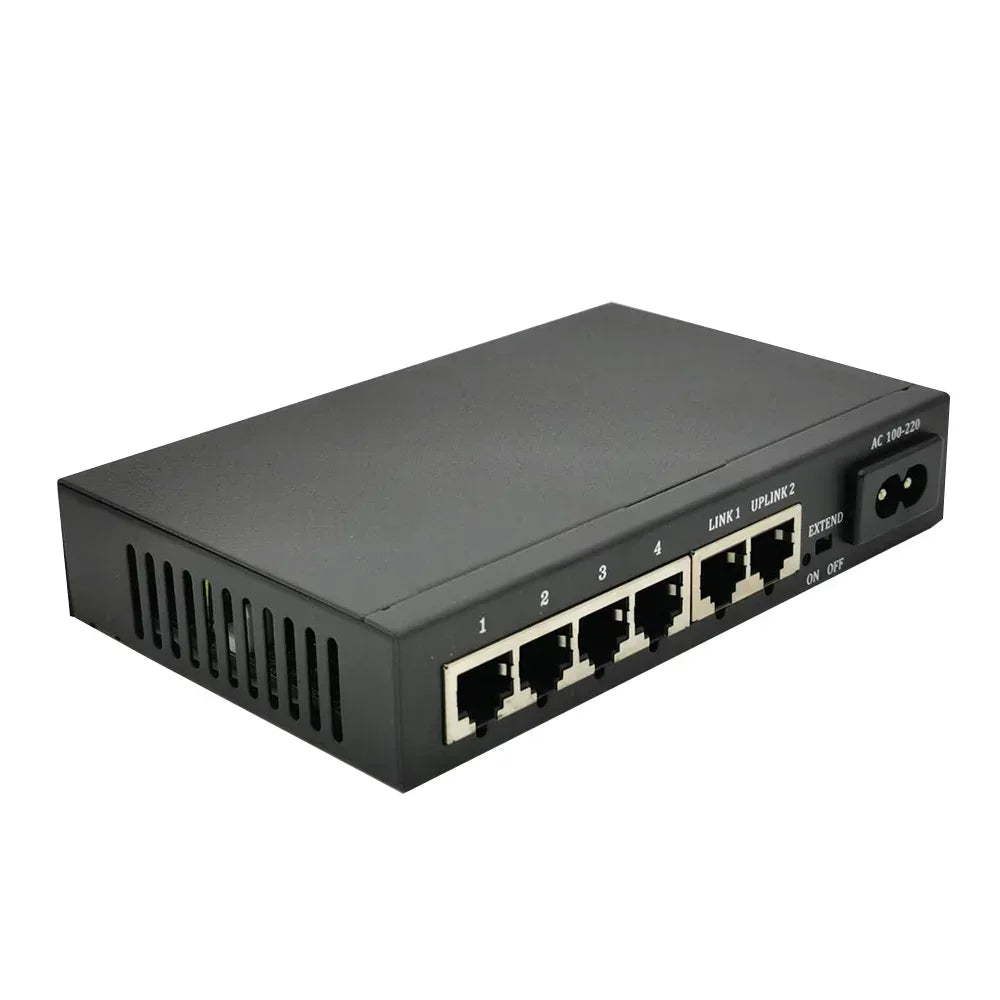

| Product Name: | 4FE(poe)+2FE Poe Switch |

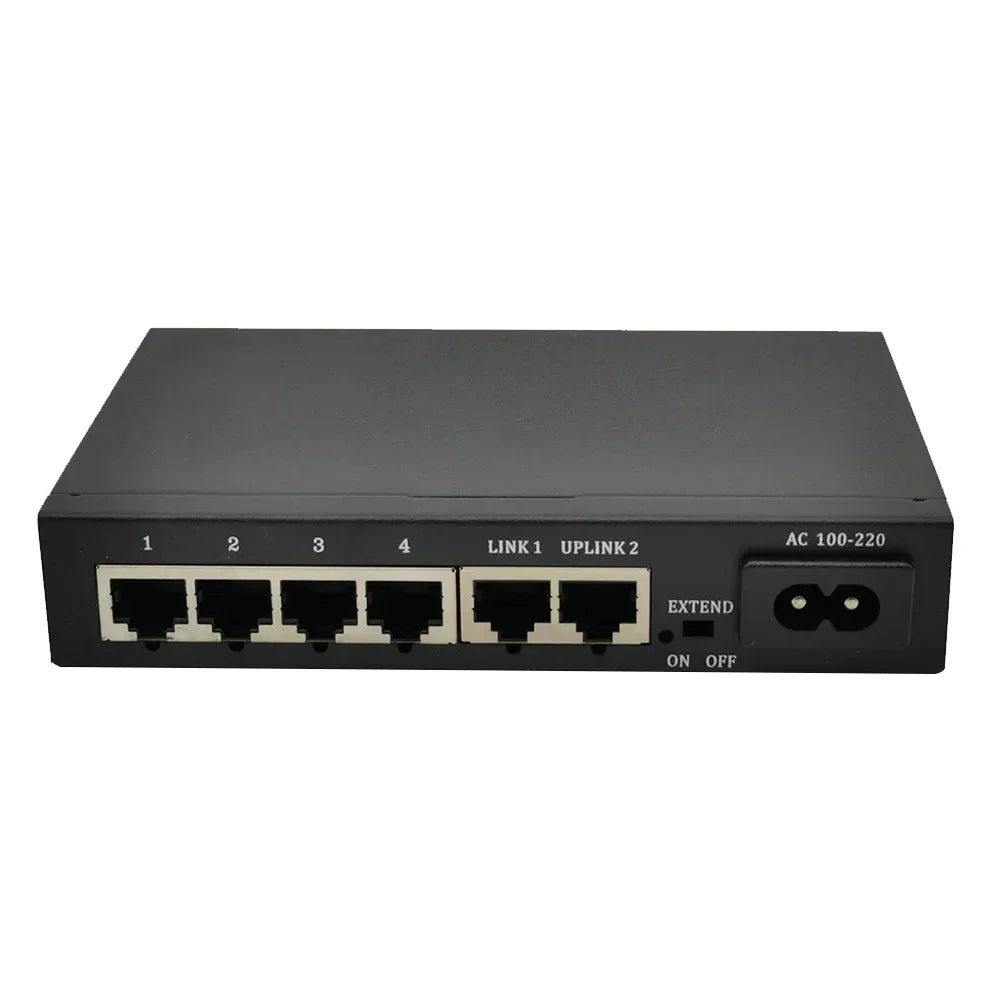

| Ports: | 6x10/100Mbps self-negotiated RJ45 port |
|

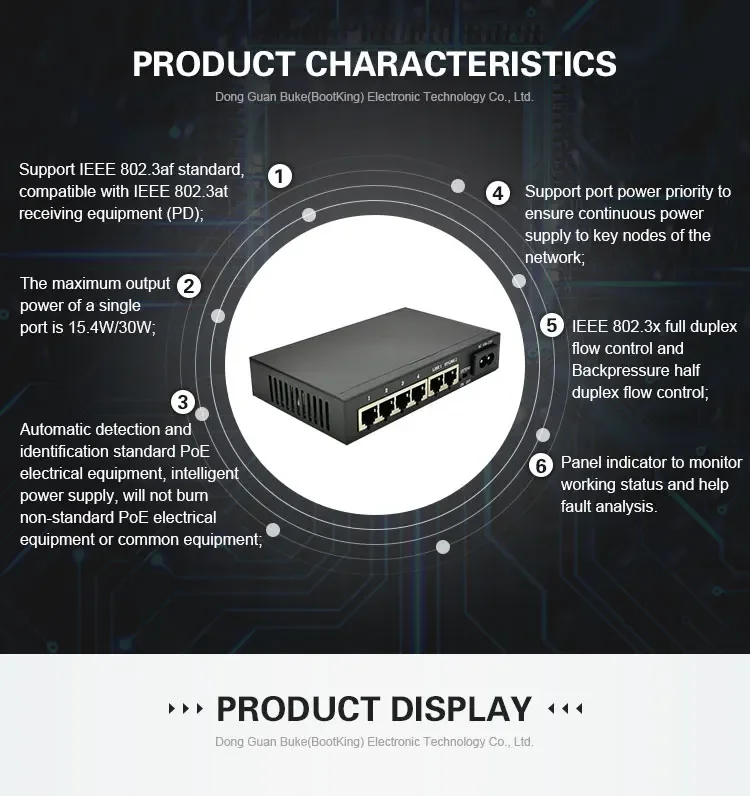

PoE Standard: |
IEEE802.3af/at |
| PoE Port: |
Port 1~4 |
| RJ45 PoE Power Supply: |
Mode A positive electrode 1/2 negative electrode 3/6 (Custom power supply mode 4 / 5 V + 7 / 8 V-) |
| PoE port output: |
Maximum 15.4 W/30W |
|
VLan / 250extend |
Support customization |
| Power supply: |
56W MAX72 W |
| Type of forwarding: | Storage forwarding |
| Exchange capacity: | 1.6 G |
| MAC Address Table: |
1K, automatic learning, automatic aging |
| Input voltage: |
AC 100-240V 50/60Hz |
| Working temperature: | 0℃~40℃ |
| Storage temperature: | -40℃~70℃ |
| Working humidity: | 10%-90% RH does not clot |
| Storage humidity: | 5%-90% RH does not clot |

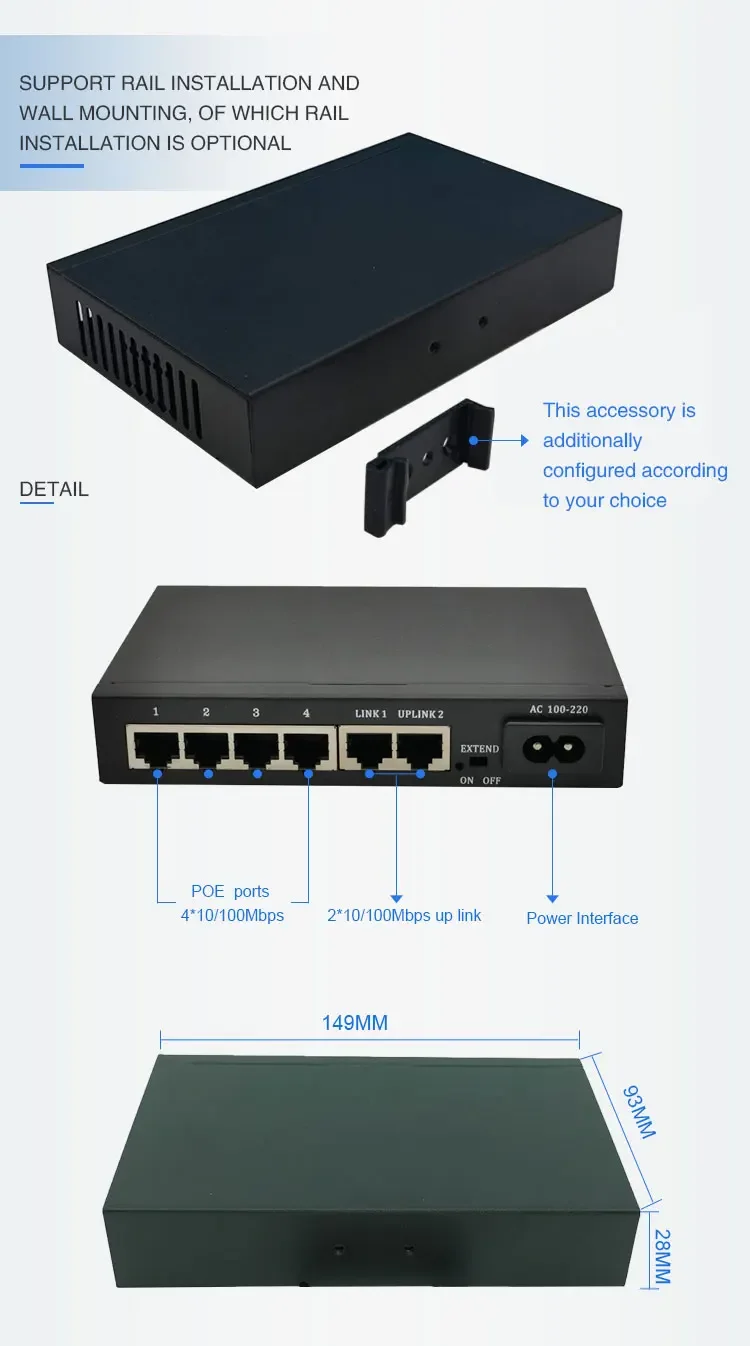

| Appearance Size (L*W*H): |
149 *93 *28 mm |
| Machine weight: | Product weight(0.36 Kg) , Packing weight (0.45Kg) |
| Package specification: | 30 SET W*D*H 430*406*305 14.5Kg |
|
Network media: |
10BASE-T: Cat 3,4,5 unshielded twisted pair (£100m) 100BASE-TX: Cat5 and above unshielded twisted pair (£100m) |
| Lightning Level: | ±4KV |
| authentication: | CE FCC |
Q1.Can we get a sample?
Yes,but we need to charge for samples,we will return sample fee in later order.
Q2.Can you offer a better price?Any discount?
Yes ,price is not a problem,more quantity more attractive price.
Q3.Do you have MOQ?
Yes,Powelink provide good OEM/OEM service to our customers.
Q4.OEM,ODM Severice is available?
Yes,Powelink provide good OEM/ODM service to our customers.
Q5.Can you take care for the shipment?
We will organize and schedule all shipping to your office if you want.
Q6.Lead time?
Sample order, 3-15 works days,bulk order, 7-30 work days after geting deposit.
Q7.What is your warranty period?
Warranty period is 12 months.
This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
