SPECIFICATIONS

Brand Name: OllyMurs

Certification: None

Choice: yes

Hign-concerned Chemical: None

Model Number: USB 3.0 Video Capture Card

Origin: Mainland China

Smart home platform: other

Spu: DZWP2186

semi_Choice: yes

4K USB 3.0 Video Capture Card HDMI-compatible 1080P 60Hz HD Video Recorder Grabber For PS4 OBS Game Recording Live Streaming

Features:

1. It can capture single HDMI-compatible video signal;

2. The recorded video signal can reach 1080p / 60Hz, HDTV input supports 4K/60Hz;

3. Support MJPEG and YUY2;

4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;

5. Some win7 need to install the driver;

6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;

7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);

8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;

9. Can automatically detect the input audio format and convert it to 48KHz PCM audio;

10. 2 collection rods can be used on a PC;

11. Support online firmware upgrade to better improve product compatibility;

12. The picture quality is clearer, the RGB color range is 0 ~ 255, the delay is better;

13. Support all third-party player software compatible with UVC and UAC protocols;

Computer system requirements:

Windows® 10 / Windows 8.1 / Windows 7 (SP1);

Desktop computer: Intel® Core ™ i5-3400 + NVIDIA® GeForce® GT630 or above;

Notebook: Intel Core i7-U 2.0Ghz + NVIDIA GeForce GT735 or above;

Mac: i5 quad-core or above, video card compatible with DirectX 10, sound card, 4GB DDR3 or more

4 GB RAM (8 GB recommended);

Mobile phone system requirements:

Android phone (supported by newer phones);

Only supports USB2, not USB3. (The reason is that android UVC driver does not support USB3);

If it is a USB Android phone, you need to force the pure USB2 cable into the USB2 mode to use

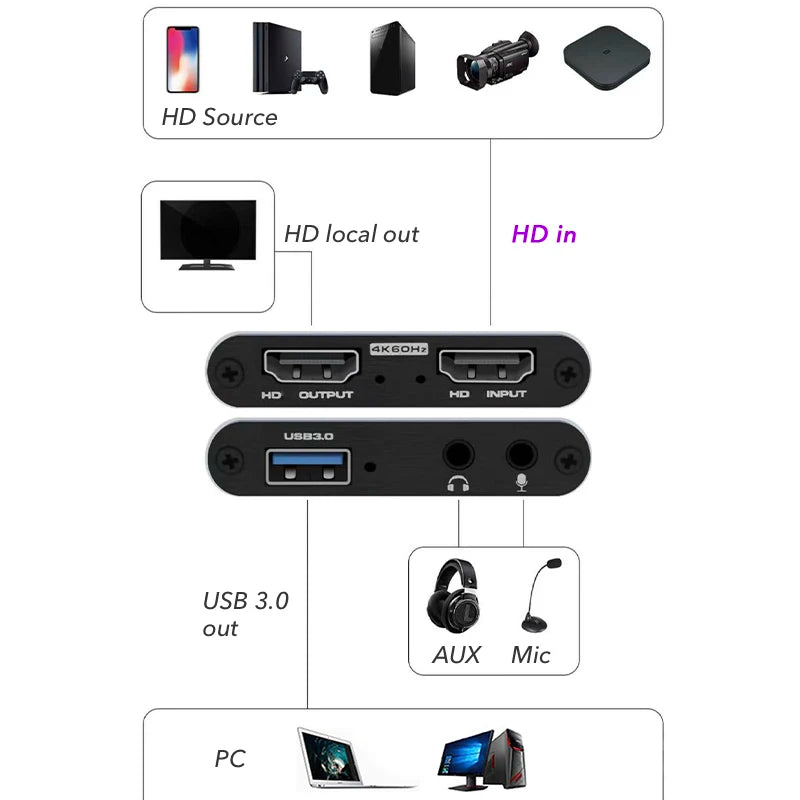

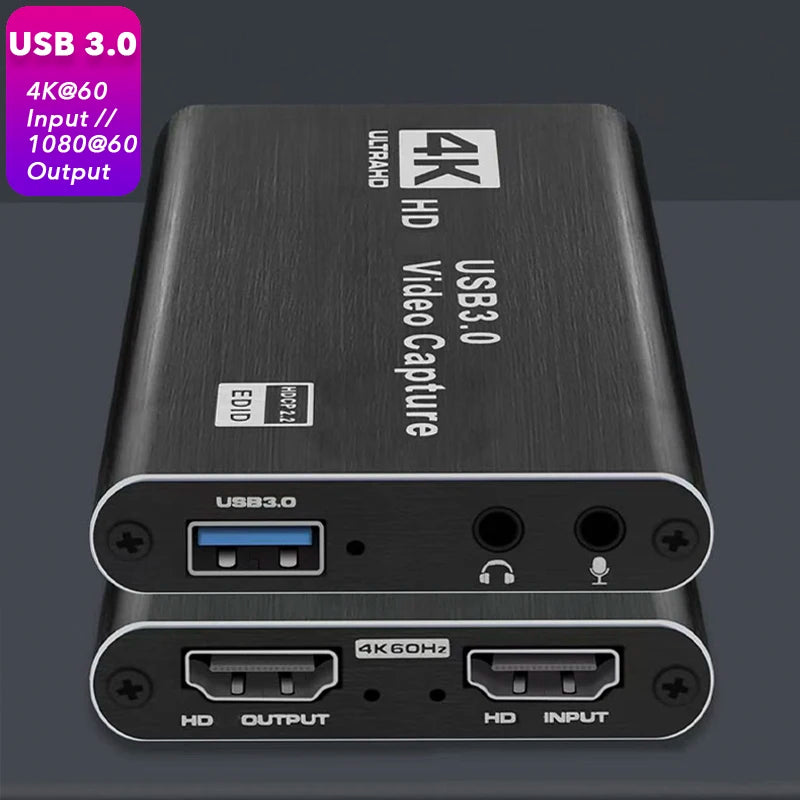

Interface Introduction:

1. Signal indicator: When the device captures video normally, the indicator lights up.

2. Power indicator: When the device is connected to the USB port of the computer, this indicator lights.

3. HDTV input: This slot is where the HDTV output source such as camera, camcorder, game box, IPTV box, etc. is connected.

4. USB3.0 output: This slot is where you connect the USB3.0 input of a computer or laptop.
