SPECIFICATIONS

AI Functions: Human Detection

Alarm Action: FTP Photo,telefon Alarm,Local Alarm

App name: Imou Life

Audio Output: Two Way Audio

Brand Name: IMOU

Built-in Mic & Speaker: Two-way Audio

Camera Weight: 737.7g( 1.63lb)

Certification: CE,FCC

Charging Temperature: -0℃~+45℃ (32℉~112℉)

Color: WHITE

Color Night Vision: Yes

Configurable Region: Yes, Support

Connectivity: WIFI(2.4GHz)

DC 5V2A Power: Imou Solar Panel Supply

Dimensions (L x W x D)(mm): 177*110*142 mm( 6.96*4.33*5.59 inch)

Field of View: 3.6mm: 88(H),45(V),107(D)

Frame Rate: Up to 15 fps

High Definition: 3.0 Megapixels

Hign-concerned Chemical: None

Human Detection: Yes, Support

IP Rating: IP66

IR Distance(m): 20m(65ft) Distance

Installation: Normal

Internal Storage: None

Lens (mm): 3.6mm

Lens Quantity: Dual Lens

Megapixels: 3MP

Micro SD Card Slot: Up to 256GB

Model Number: Cell PT Lite Kit

Motion Detection: Yes, Support

Operating Temperature: -20℃~+50℃ (-4℉~122℉)

Origin: Mainland China

Performance Region: Yes, Support

Power Consumption: <3.5 W

Power Mode: Battery Powered

Power Supply: Normal

Power of solar panel: 3W

Rechargeable Battery: Built in,5000mAh

Scene: Outdoor

Sensor: CMOS

Sensor Brand: Omnivision

Shell Material: Plastic

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 98,Windows XP,Windows 7,Windows 8,Windows 10

TF Card: None

Video Compression Format: H.264,H.265

Zoom: 8x

Zoom type: Digital zoom

is_customized: No

Cell PT Lite With Solar Panel

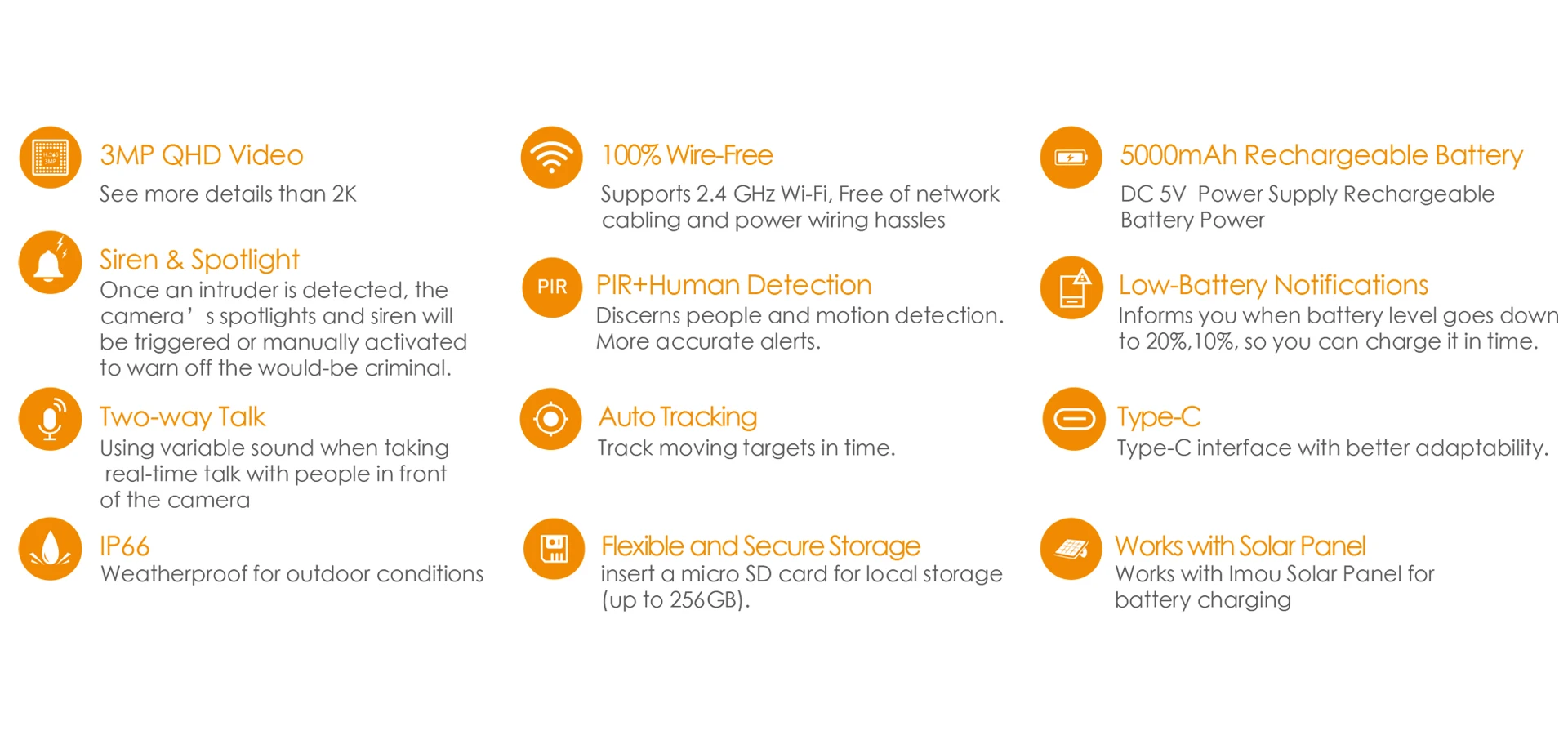

Endless Power, Endless Protection3MP QHD Video | 100% Wire-Free
| 5000mAh Rechargeable Battery

Siren & Spotlight | PIR+Human Detection | Low-Battery Notifications

Two-way Talk | Auto Tracking | Type-C

IP66 | Flexible and Secure Storage | Works with Solar PanelSee the world in 2K

Cell PT delivers 2K QHD high resolution so you won't miss a single detail.5000mAh battery and USB-C fast charging

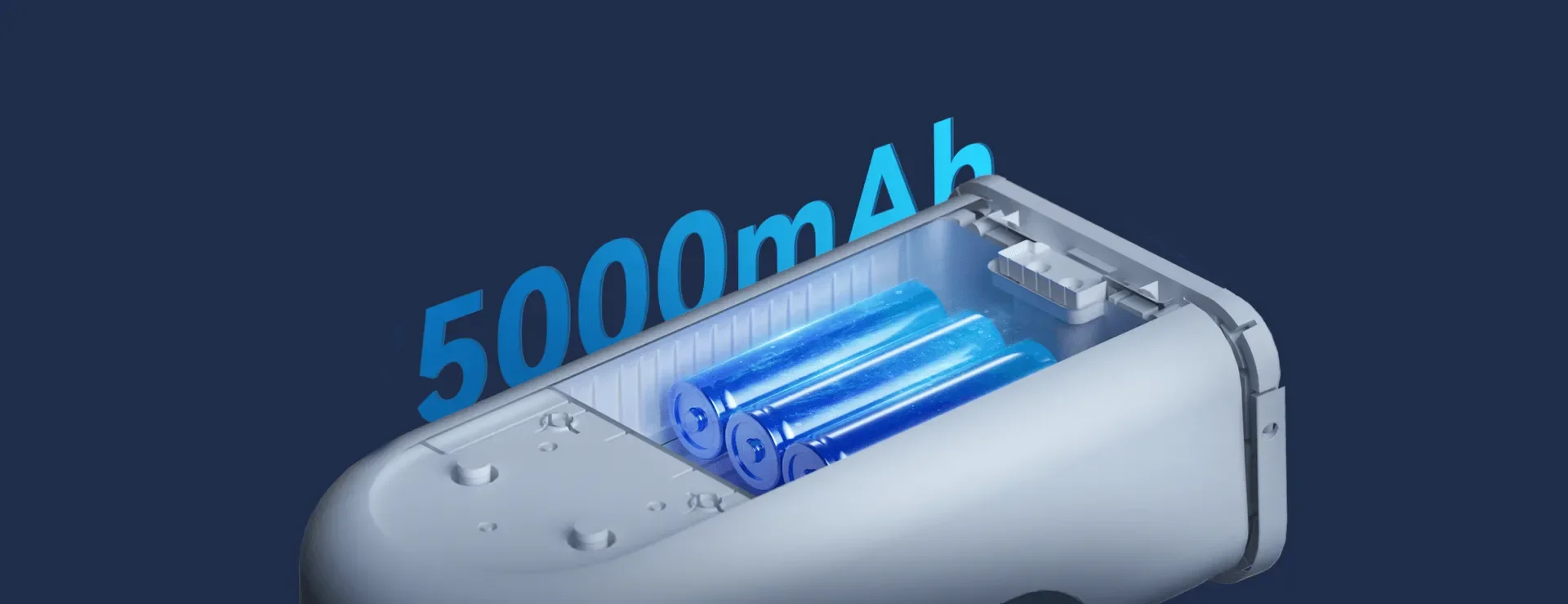

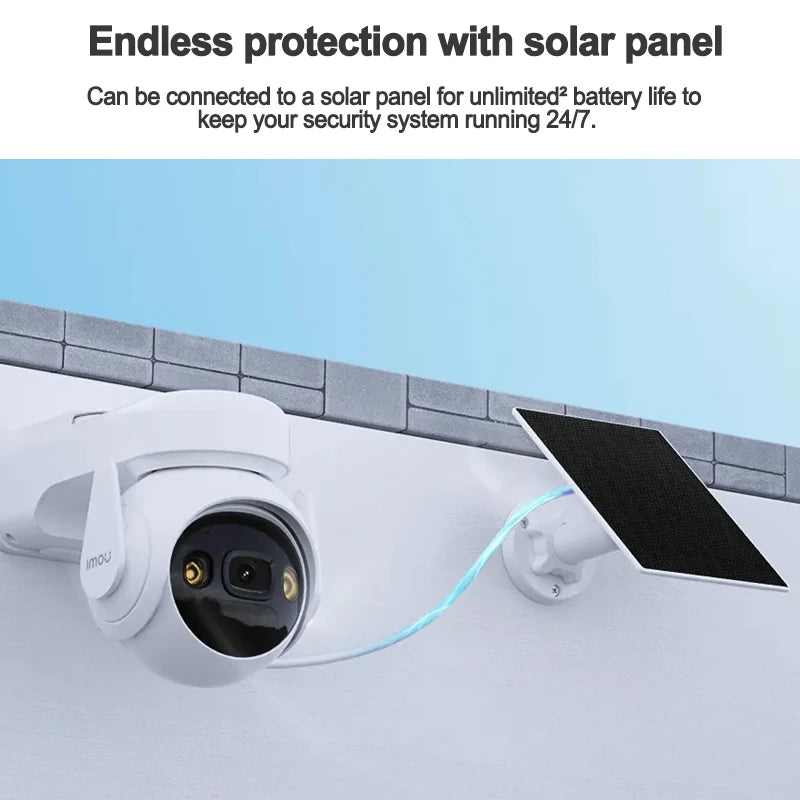

The 5000mAh capacity battery allows for long hours of continuous operation and comes with a USB-C port for fast charging.Endless protection with solar panel

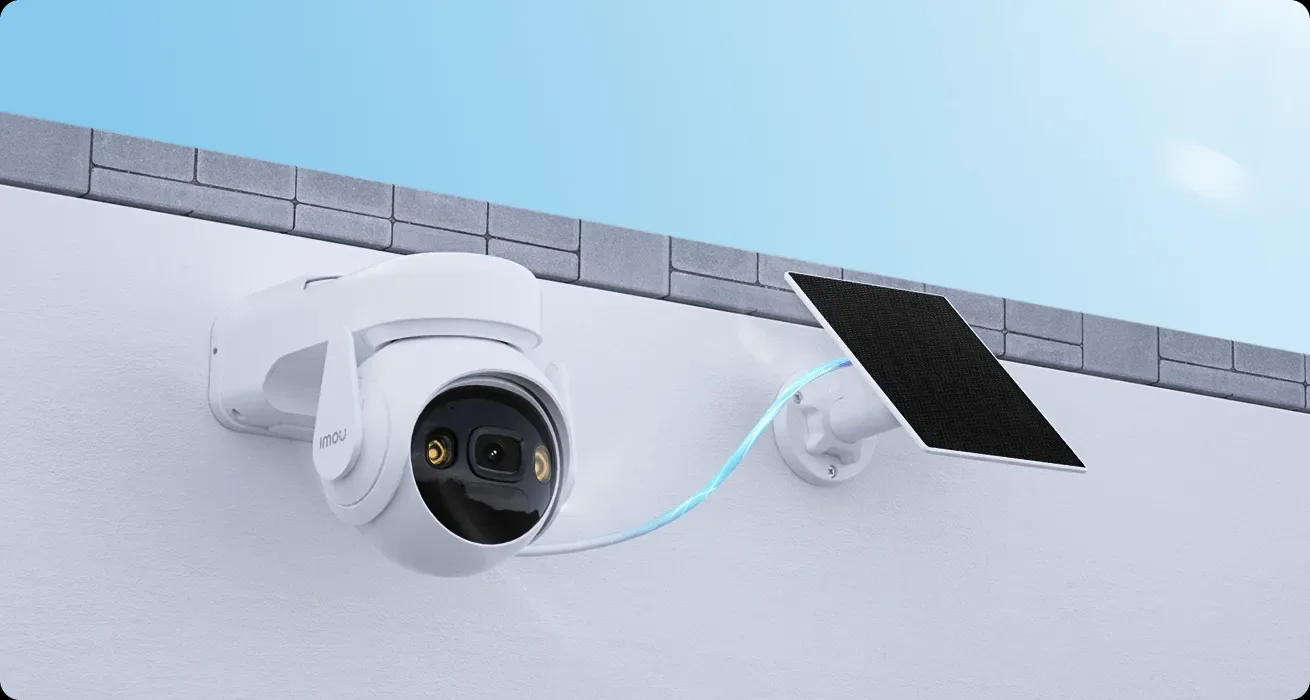

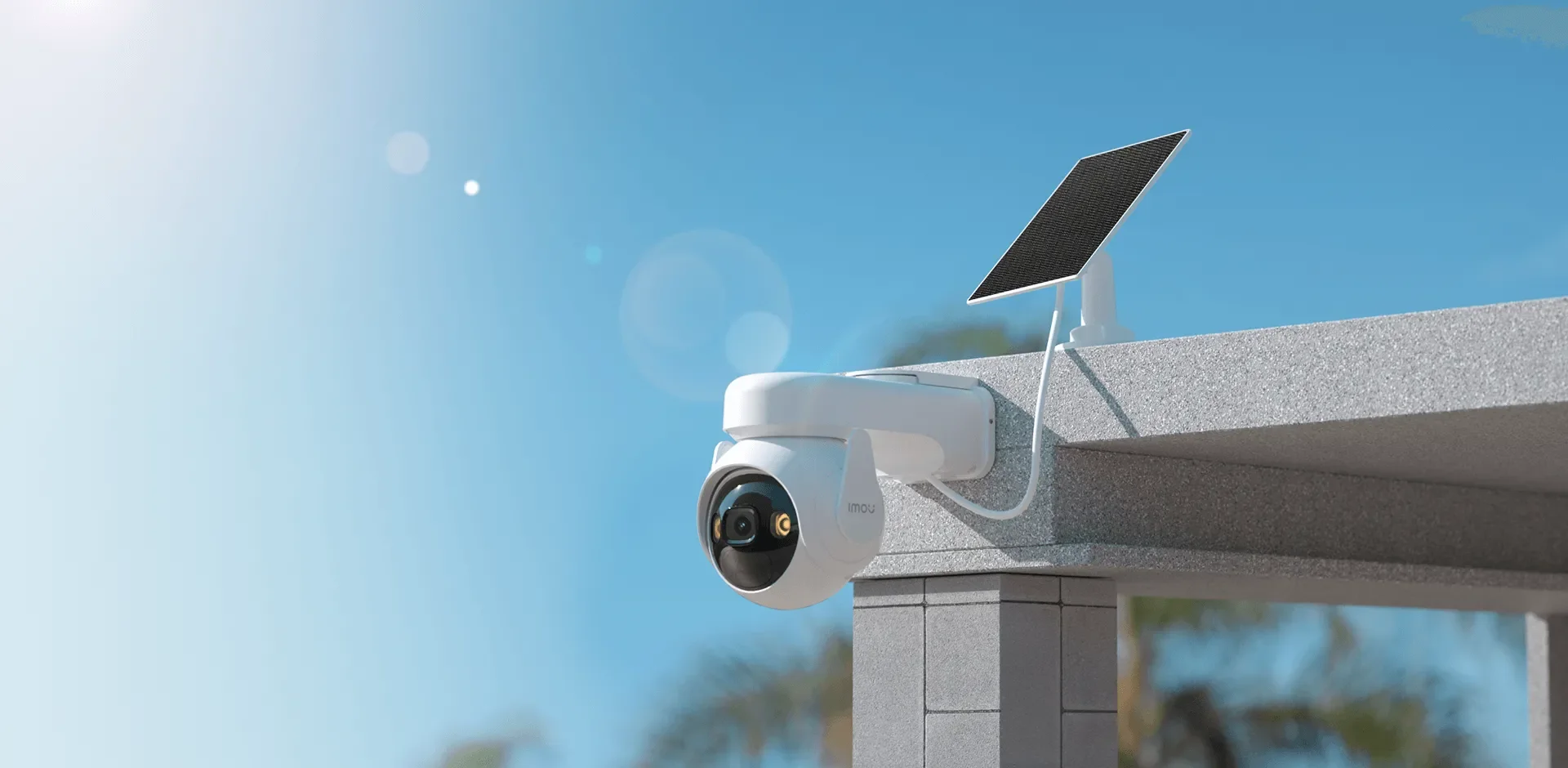

The Cell PT can also be connected to a solar panel for unlimited² battery life to keep your security system running 24/7.Quick installation with just one hand

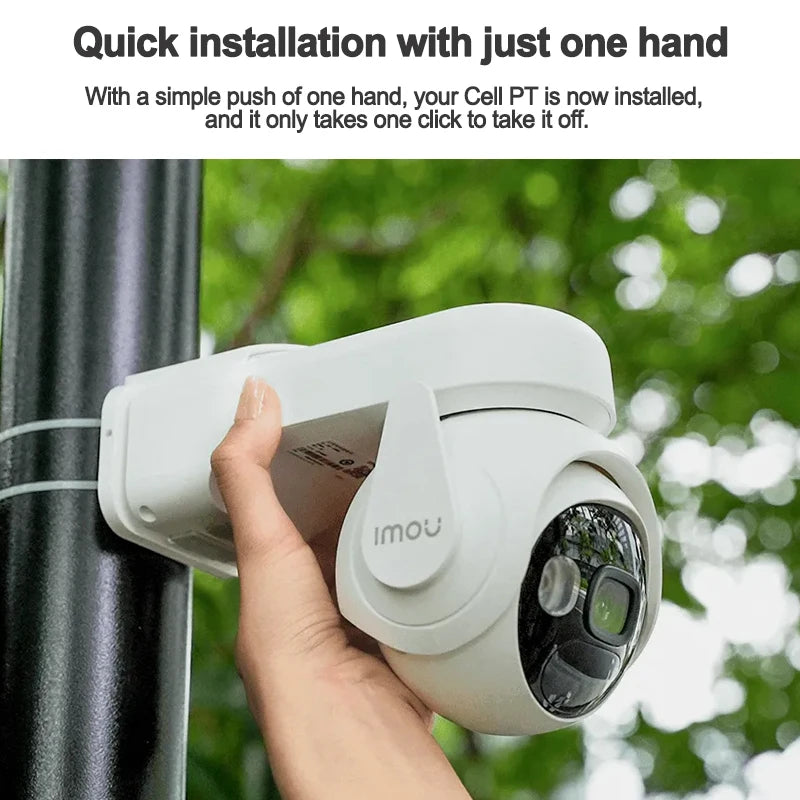

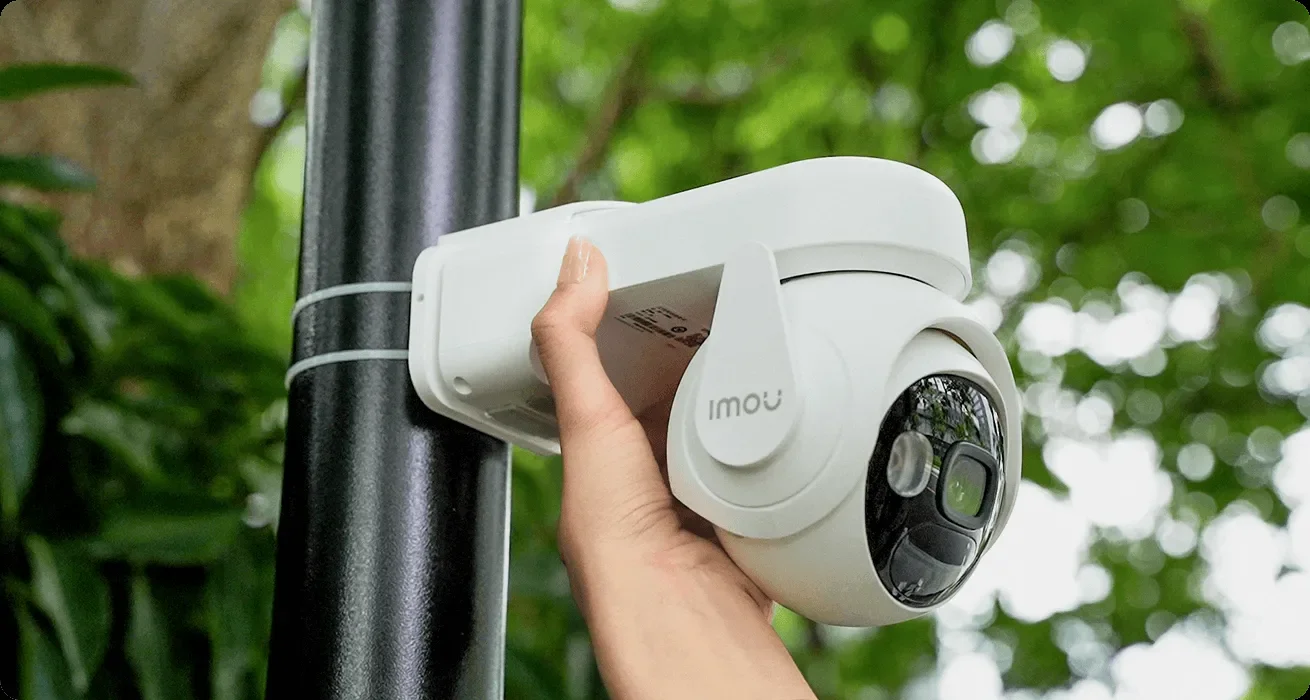

With a simple push of one hand, your Cell PT is now installed, and it only takes one click to take it off.Panoramic pan & tilt for 360° protection

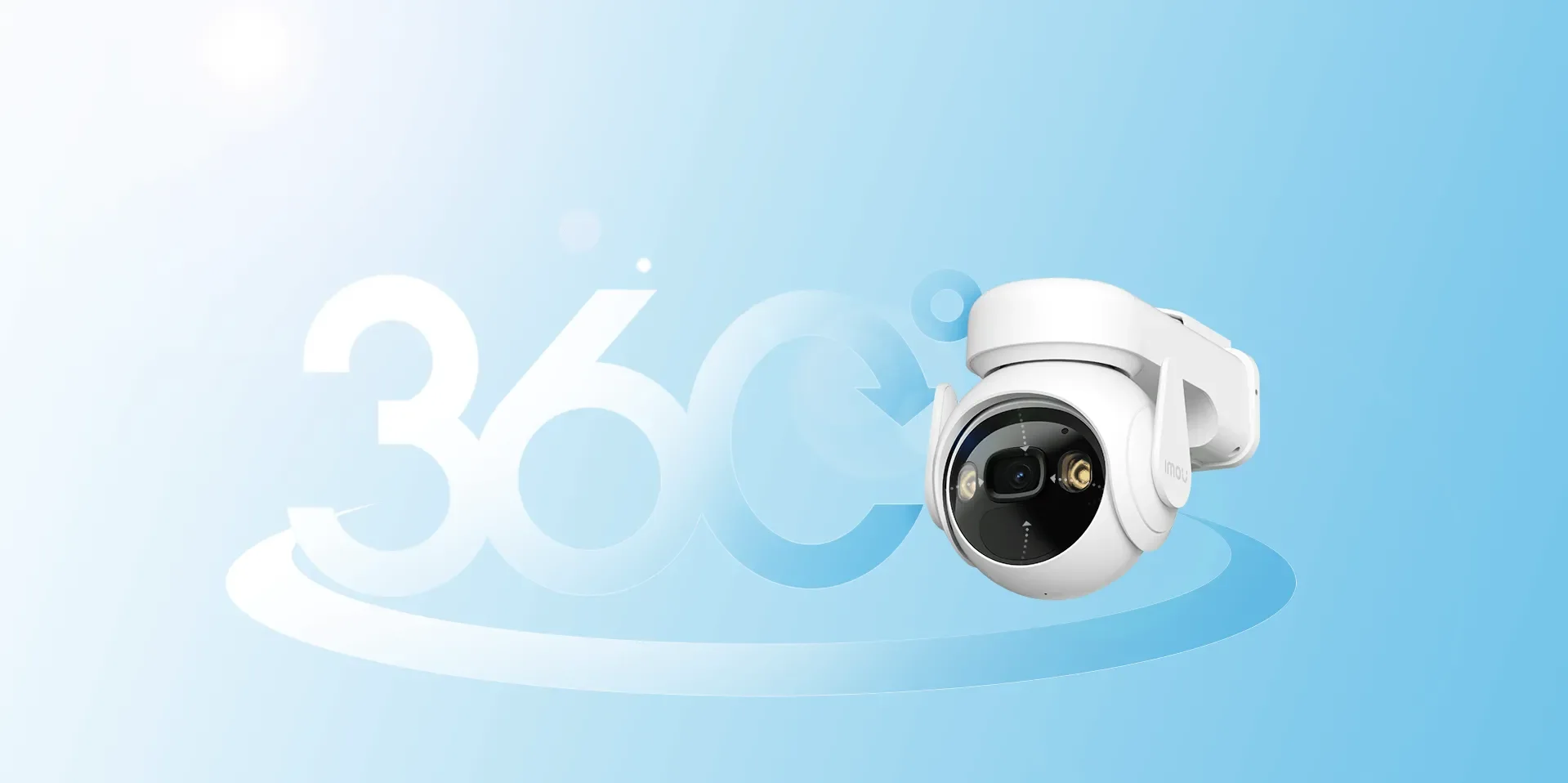

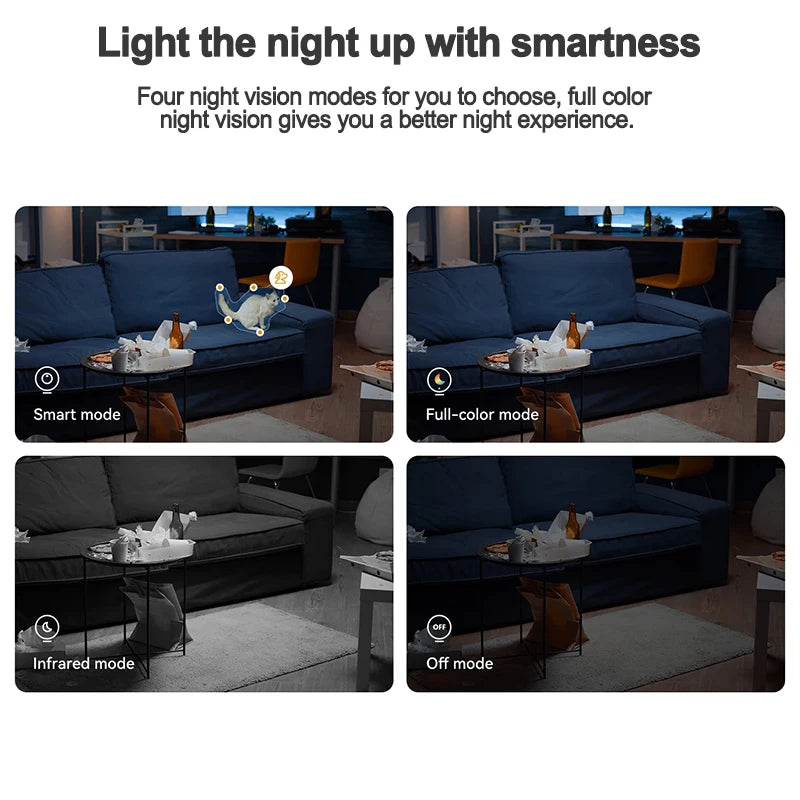

Cell PT supports 0°-355° pan and 0°-90° tilt to fully protect your home with a 360-degree view.Light the night up with smartness

Cell PT can adjust different night vision modes according to your needs, whether you want the night vision to remain in full color all the time or want to turn on full color only when there is an event to save energy, it can always satisfy you.

▶ Smart mode

The camera will automatically turn into color mode from infrared mode when suspicious motion is detected.

▶ Full-color mode

Thanks to the built-in spotlights, your night vision is now turned up and in full color.

▶ Infrared mode

Advanced IR algorithm provide clear black-and-white pictures even in darkness.

▶ Off mode

Turn off all night vision modes Infrared and spotlights are all turned off.More efficient PIR human detection

Cell PT will activate the video algorithm for person detection when motion is detected, ensuring efficient detection and long battery life.Stay on target

The detection algorithm of Cell PT continuously tracks moving objects in the frame, keeping the target in the frame at all times.Professional protection to weather any storm

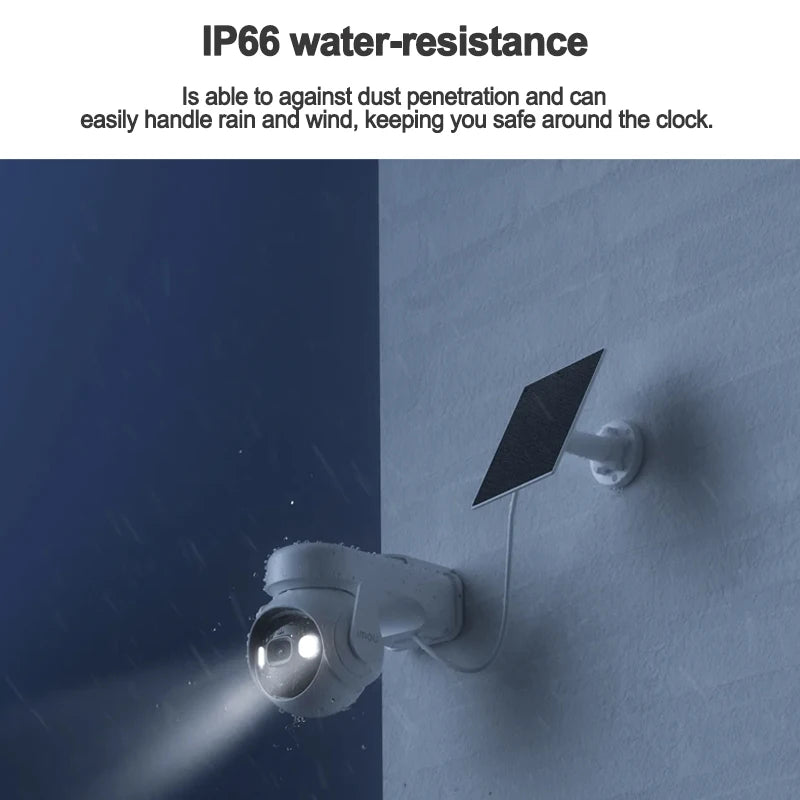

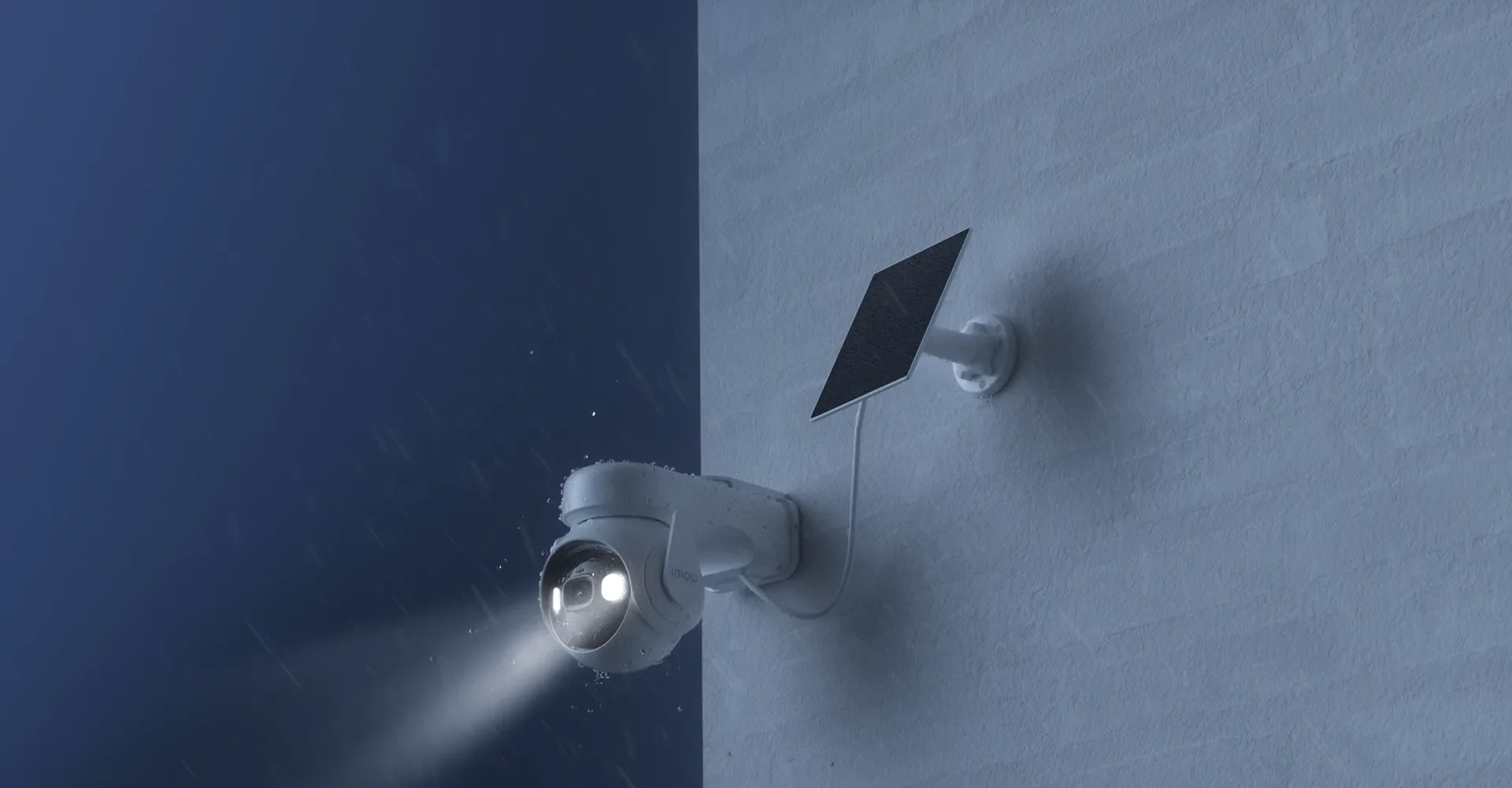

With IP66 water-resistance, Cell PT is able to against dust penetration and can easily handle rain and wind, keeping you safe around the clock.Different working modes to suit your needs

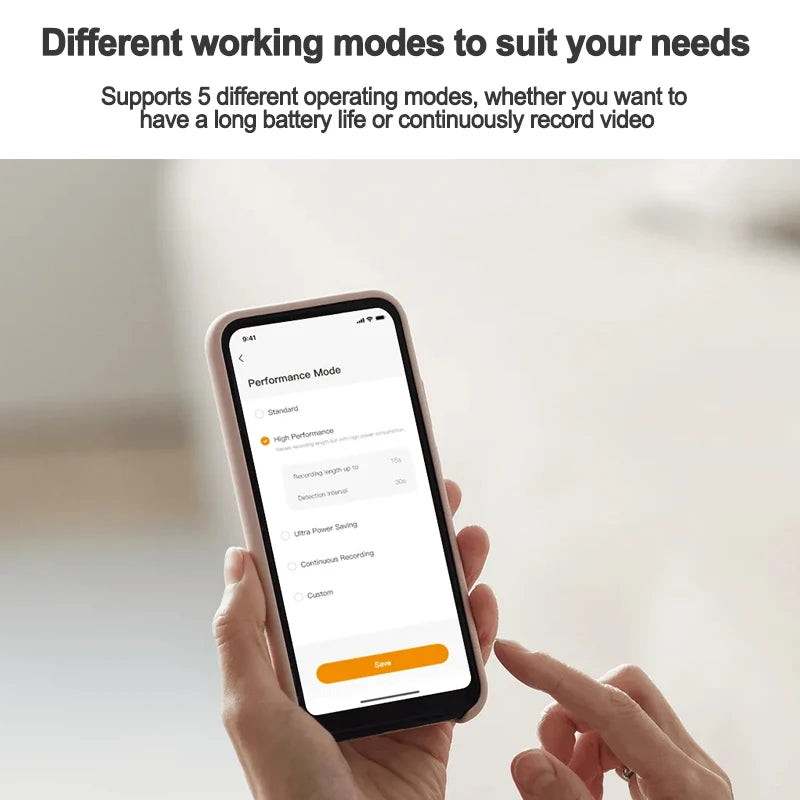

The Cell PT supports 5 different operating modes, whether you want to have a long battery life or continuously record video, you can set it through the app.Fully customize your security

With IMOU Life App, you can set up different security options, such as setting the detection sensitivity, alarm tone, setup time, etc. to make security work for you.Protect according to your preferences

● Favorite Point Setting

● Customizable detection zone

● Customizable Alarm Sound

● Protection SchedulingDeter unwelcome visitors

Cell PT keeps an eye on your house, when someone breaks in, the 120dB siren will turn on to deter the unwelcome visitor.Interact in real-time

A built-in speaker and a microphone with the echo cancellation feature allow you to interact with family from anywhere.Work with Smart Home Platform

Imou life/AlexaProduct DetailsWhat's in the box?

- 1x Camera

- 1x Quick Start Guide

- 1x Power Cable(1m)

- 1x Mouting Bracket

- 1x Screw Positioning Stickers

- 1x Screw and Wall Anchor pack

- 1x Solar Panel

-1x Locking Screw Cap

-3x Wall Anchors

-1x Unversal Joint

-1x Base

-1x Quick Start Guide

-1x Circular Socket Nut

-4 Screws

Operating with Imou Life AppFAQ

Q: Difference between SD memory card and cloud storage?

A:

1) Using SD card need to use computer to read the history monitoring screen, when the memory card is full, it will automatically delete and start a new round of recording, make sure to save the data in time;

2) Cloud storage is a value-added service, new devices have a 7-day free trial period of cloud storage, you can view the history monitoring screen directly in the app. When the trial period is over, you can choose to subscribe in the app. There is a time limit for using this service, when the time is full of 3 days or 7 days, the records will be automatically deleted and start a new round, make sure to save the data in time.

Q: How to modify device’s photo /name /channel name /password in mobile app?

A: Two methods to modify device infos from your account,firstly login into your account in mobile app:

Method 1: Go to preview page then click icon on the top right corner, go to device settings page,click device image bar to Device Info page,click corresponding option to modify.

Method 2: Click Me->My Device->select corresponding device ->click device image bar to Device info page -> click corresponding option to modify.

Q: The app says"Failed to bind"?

A: When the app says “Failed to bind”, it means your device is already successfully connected to your Wi-Fi, but failed to add the device to your Imou account. Please double check whether your router is connected to Internet, then try again. Normally the reason is the Internet connection is not stable.

Q: Imou account?

For security reason, one camera can be bound to only one Imou account. So if you want to add your camera to a new account, please delete it from the previous account first.

A: Two methods to delete camera from your account,firstly login into your account in mobile app:

(1) Method 1:go to preview page then click gear icon on the top right corner, go to device settings page, slide to the bottom then delete device.

(2) Method 2:Click Me->My Device->select corresponding device ->slide to the bottom ->Delete Device.

Q: I changed my Wi-Fi, I want to put the camera at a new location, how to connect my camera to my new Wi-Fi?

A:

1）Firstly please check whether your camera has an Ethernet port and whether you have an Ethernet cable at hand.

2）If yes, please power on your camera and connect it to your Router with the Ethernet cable, wait till the LED turn stably blue to make sure it has access to Internet. Then login to your Imou account, find your IPC on “Device” page and go to its settings page, then tap “Wi-Fi Config” and you can connect it to your new Wi-Fi.

3）If your camera has no Ethernet port or you don't have a cable at hand, we suggest you reset your camera to factory default, then setup your camera with the new Wi-Fi.

Q: How can I receive the alarm message?

A:

1）Firstly, you need click the enable button in the upper right corner in the picture of the channel of main page.

2）If it says “Failed to subscribe”, we suggest you ensure the following configuration:

Receives notifications from APP. Enable Imou Notifications via “Settings”->” Notifications” on your iPhone and “Me”-> “Settings”-> “Notice” on Imou APP.

3）Enable Event in the device. Take motion detection as an example, the event should be enable and time schedule should be valid.

4）Make sure the device is connected to Internet.

5）After successfully subscribe, you will receive the message.

Q: Working at night, the image is all black？

A: Reason:

1）IR LED didn’t light up

2）ICR didn’t switch to night mode

3）Objects are too far away from the camera

Solution:

①If the IR LED did light up, but you cannot hear “KA” and the image is still all black, maybe there is something wrong with the ICR.

②For consumer cameras, the IR distance is less than 10m(differ between different models), so you cannot see too far away at night.
