Tips:

①The Router not support Digi Spain Sim Card.
②4G Speed Up to 150Mbps in 4G Mode , 2.4Ghz Wifi Speed Up to 300Mbps in AP Mode.

③Only send EU Power Plug.

FAQ

Q1: Can not recognize SIM card?

A1: Please insert the SIM card before powering up the device, otherwise the SIM card will not be recognised.You can insert SIM card into the router for one minute first,then turn on the power.And then log in web ui page to check the sim card.If still not recognized the SIM card,please install another SIM card from another SIM card operator.

Q2: The device can not connect to the Internet normally?

A2: You need to disable the PIN code of your sim card and manual modify the APN info. in the router. Please log in web ui to fill in correct APN.About APN ,you can call your sim card operator to check.APN setting refer web, www.apn.how

Q3: My router's Internet speed is slow, how can I improve it?

A3: Buyers can log in to the WEB UI page and adjust the network mode of the router, which is recommended to be set to "4G Only". If indoors, buyers are advised to place the router in a position suitable for receiving signals.

Q4: Can this router work in my country?

A4: The router not support Spain Digi SIM Card.Other SIM Card refer.If you are not sure whether it can work in your country,you can consult the seller or research it here before you place the order.Check SIM card web,www.frequencycheck.com.

Q5: Why can't 4G network speeds reach 150Mbps?

A5: Router's 4G chipset top capacity is 150Mbps, and 4G base station's theoretical top speed is 150Mbps too.However the 4G base station provide service to many 4G users at the same time,instead of giving full 150Mbps bandwidth to one user,and 4G signal strength, SIM card limitation and environment would affect the network speed too

Q6: Why the internet speed slower when the SIM card is inserted into the router than in the phone?

A6: Please don't compare the speed of our router to the speed of a cell phone. Our product uses a cheaper 4G chip than a cell phone 4G chip and has a different design scheme, so it is not comparable.

Q7: Wrong or forgotten WIFI password?

A7: Users need to keep the router on, then press the reset button for 10-15 seconds and wait for the router to reboot, the router will restore the initial Wifi password.

Q8: Why doesn't the indicator light come on when the unit is powered on and won't start?

A8: We recommend that users check the voltage in their homes to see if it is normal. Try to change another power outlet or DC 12V power supply and try again.

4g Router Frequency Band：

EU Version

4G LTE FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800MHZ)
4G LTE FDD:B38/B39/B40/B41(2600/1900/2300/2500MHZ)
3G WCDMA:B1/B8(2100/900MHZ)
2G GSM:B3/B8(1800/900MHZ)

Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.

4G LTE Router

◆1.150mbps wifi router is outdoor 4G CPE router with 2pcs external high gain antenna to achieve 4g LTE signal amplification.

◆2. 4g router is desiged with water-proof and lightning-proof casing helps the unit to be good used at outdoors without Broadband

◆3.KuWFi Outdoor Waterproof 4G lte CPE Router use MTK Chipset MT6735WM.

◆4.Outdoor wifi distance :10-50M ,support max 10users ,thanks!

◆5.When getting access to internet through ethernet cable; Get access to internet through 4G/3G/2G Get access to internet by inserting SIM card and connecting to device(SIM 4G mode need to confirm the LTE frequency is supported and the APN is correct)

◆6.Dual antenna high speed - External antenna *2(one for wifi, one for LTE main antenna), Internal LTE diversity antenna. Wi-Fi Transfer rate：UP to 150Mbps. Support LED indicator1.150mbps wifi router is outdoor 4G CPE router with 2pcs external high gain antenna to achieve 4g LTE signal amplification.

Main Features:

◆ MTK chipset supporting global network TDD-LTE/ FDD-LTE/ UMTS

◆ LTE CAT4 up to 150Mbps

◆ IP66 Waterproof Level

◆ Low power consumption

◆ Dual high gained external antenna

◆ DC12V, 1A power in

◆Lan: 1 x 10/100 Mbps Ethernet port(RJ45)

◆Antenna: external 2pcs antennas

◆Power: 1 x DC power adapter , DC12 V/1A

◆Reset: Restore the router to its original factory

◆Operator Temperature:-20C～70C

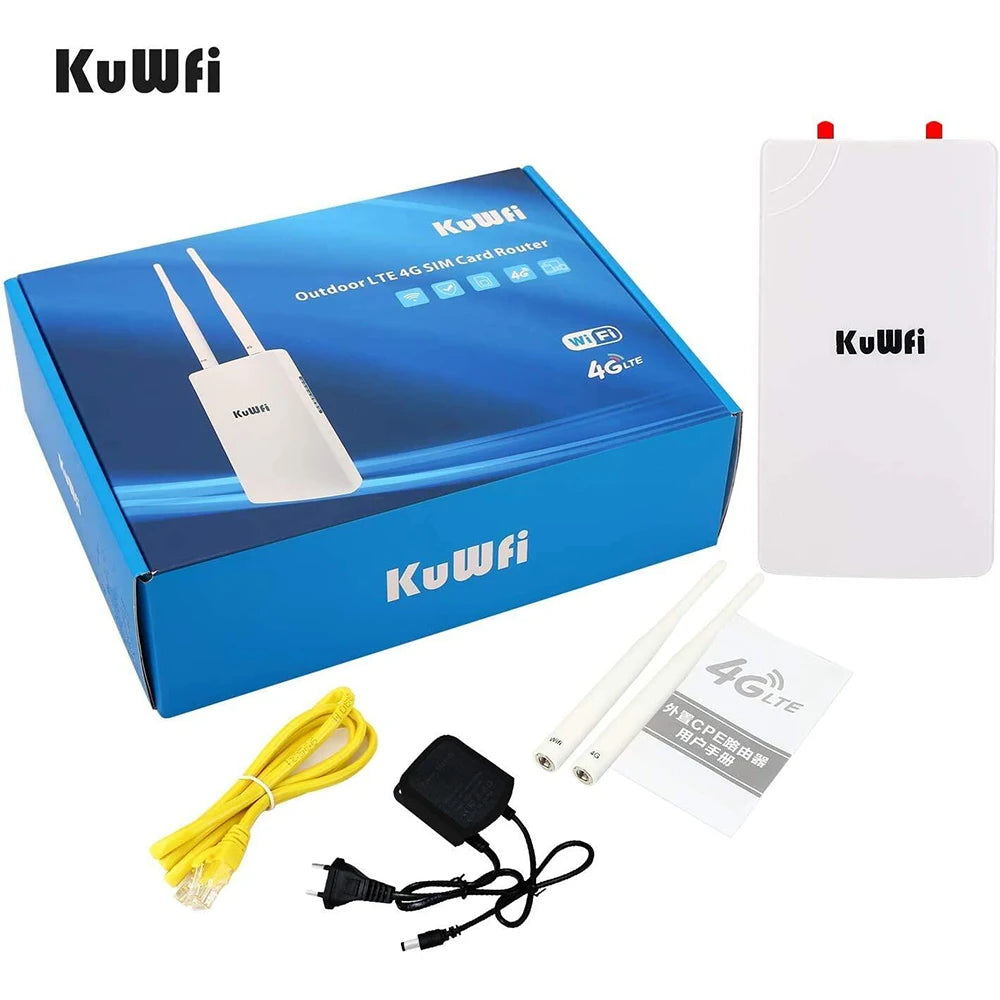

Package Listing:

1 x 4G WiFi Router
2x Antennas
1x DC Power Adapter
1x English User Manual
1x RJ45 Lan Cable
