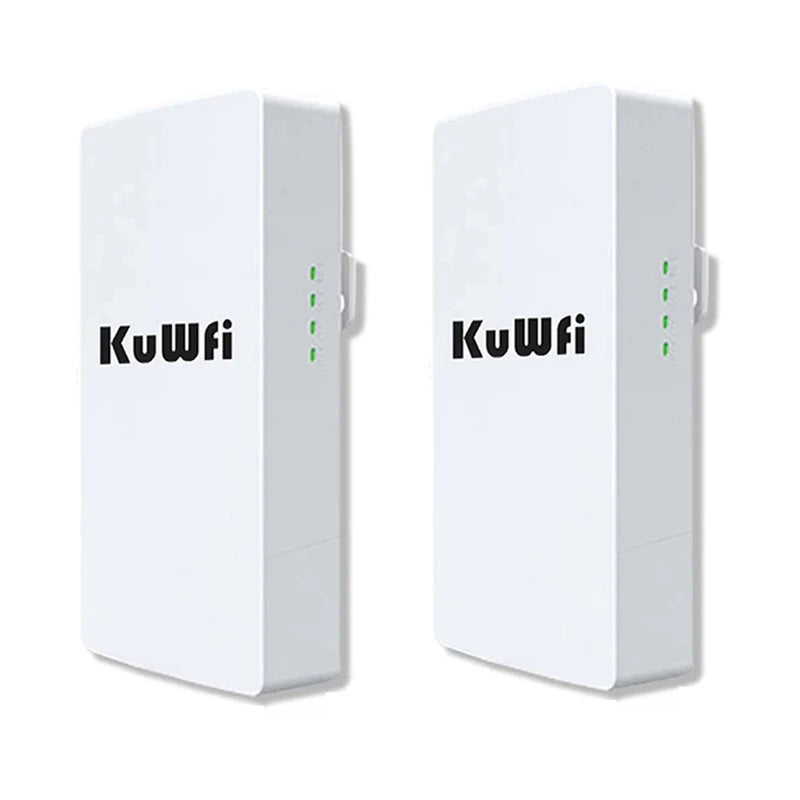

Product Description

1. 2.4GHz frequency band, support 300Mbps AP function, can access more wireless clients.

2. It adopts dust-proof and waterproof shell, all-weather sun protection, waterproof and dust-proof sealing design, which can be used in various outdoor environments.

3. Support PoE remote 100M network cable power supply and DC power supply mode, easy to manage, support digital display pairing information for remote pairing debugging,

4. It is suitable for outdoor monitoring projects, especially when two routers work at the same time, the LED displays the same number NO, which means they have been paired.

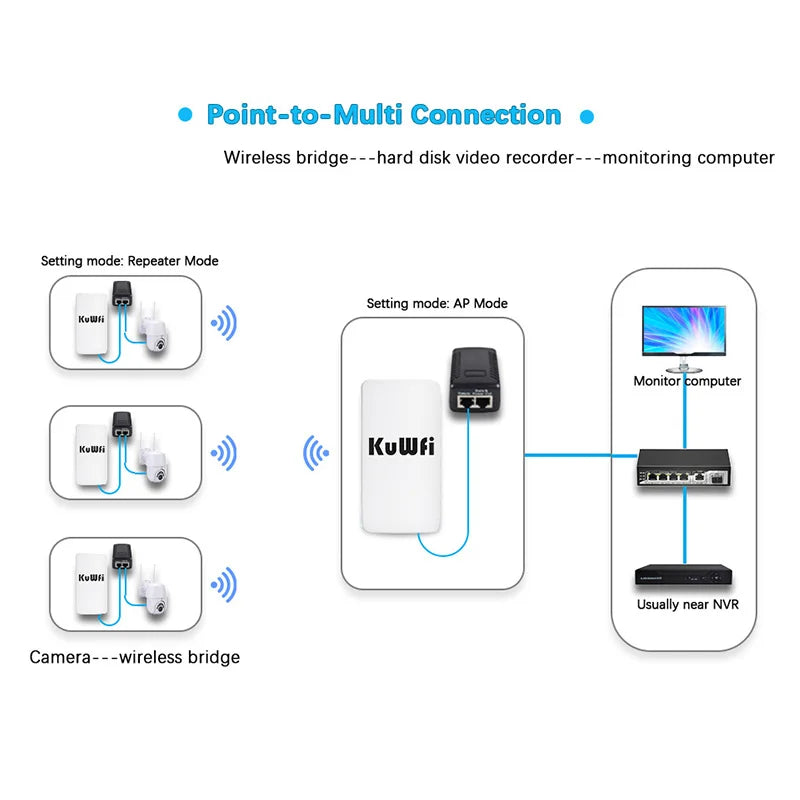

5. Effective solution for PTP, PTMP application and easy to use IP camera (camera) and network DVR to set up CPE

6. Working temperature: -30℃-55℃ Storage temperature: -40℃-70℃

7. Equipped with 2*10/100M LAN ports, Ethernet data rate is 2 times faster than ordinary CPE, support gateway (PPPOE, static IP, dynamic IP), wireless AP

Specification

Wired Interface: 10/100Mbps LAN*2

Standard: IEEE 802. 11b,IEEE802.11g ,IEEE802.3n

Power : POE 24V 0.5A

Encryption: WEP encryption 64/128bits, WPA, WPA2,802.1x 5.

Operating temperature: -5℃ ~ 65℃

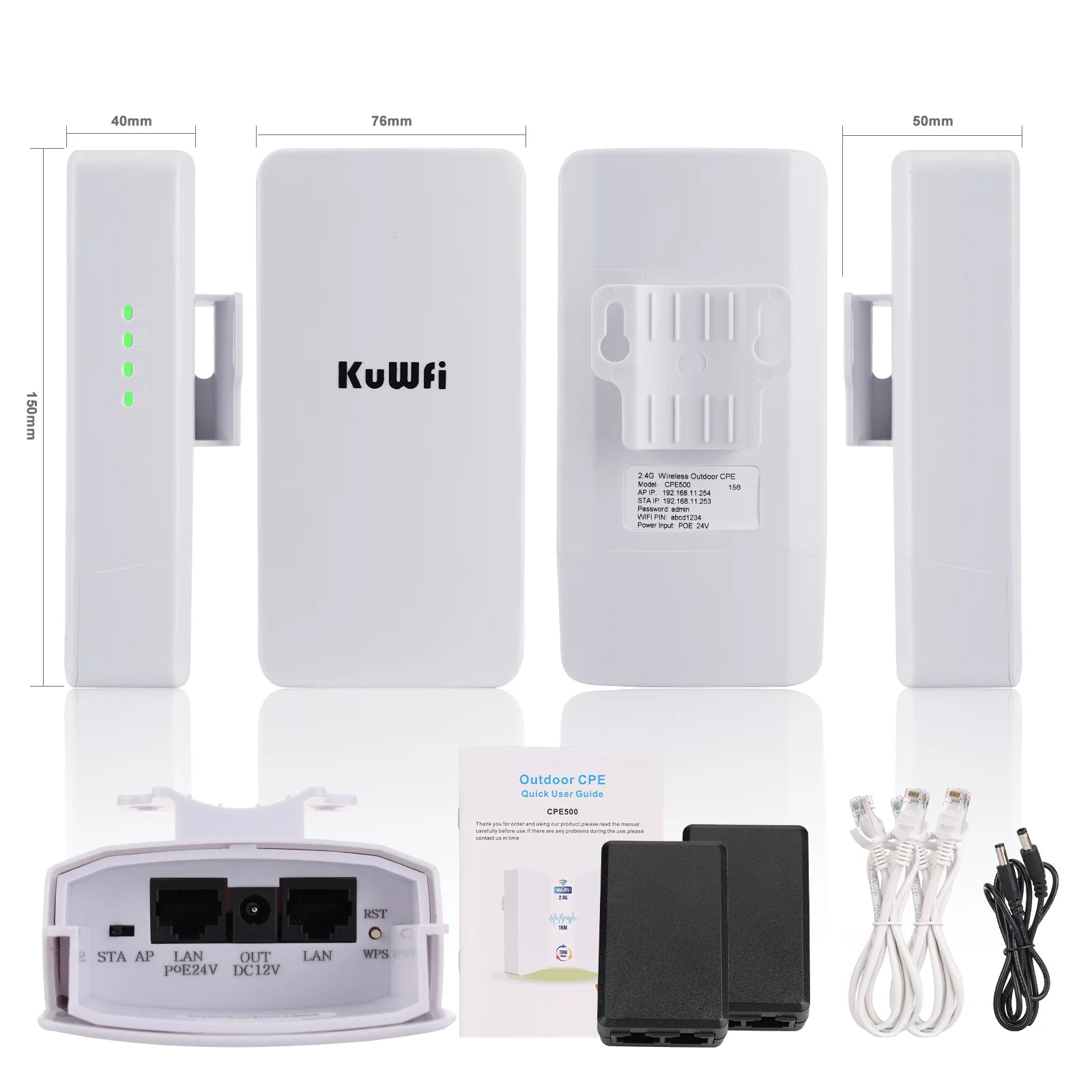

Packing list

Router*1/2pcs
POE Power Adapter (24V0.5A)*2pcs
Quick Start Guide*1pc
Ethernet Cable (1meter) *2pcs

Note:

The IP addresses of routers in different modes are different.

Master Bridge

(AP) IP address: 192.168.11.254

Slave Bridge

（STA）IP address：192.168.11.253

Since the Bridge devices are mainly used for long-range signal bridge and repeating,and to avoid IP address confliction when the CPE is connected with another router device,our bridge products disable the DHCP function(automatic IP address assignment)by default,you need to set CPE ,please make the follow step configure

1.Please connect cpe with power by poe adapter ,and then connect cpe with your PC

2.Pls configure your PC IP as 192.168.11.xxx (xxx is a figure 2-254)as the diagram below.

How to Configure Your PC IP As 192.168.11.xxx:
--Find the network icon in the lower right corner and click Open Network and Internet Settings.

--Select Ethernet and Click the Change Adapter Option.

--Find the network connection you are using and right click on Properties

--Double-click the IPV4 setting,select the IP address below,enter the IP and confirm.

--Configure your PC IP as 192.168.11.xxx (xxx is a figure 2-254),note that the set PC IP cannot be the same as the IP of the CPE

3.Open the browser ,input 192.168.11.254 or 192.168.11.253 at the IE bar,then input user name and password at the user interface to enter into the configuration page.

Master CPE Default IP:192.168.11.254
Slave CPE Default IP:192.168.11.253

Adapt to all kinds of harsh environments

Using ASA outdoor engineering plastic shell and professional components, to provide IP65 level dust, waterproof, adapt to the wind blowing, sun exposure, rainforest, snow freeze and other harsh environment, even in the extreme high and low temperature (-30°C to 70°C) environment, also can be normal and stable work.
