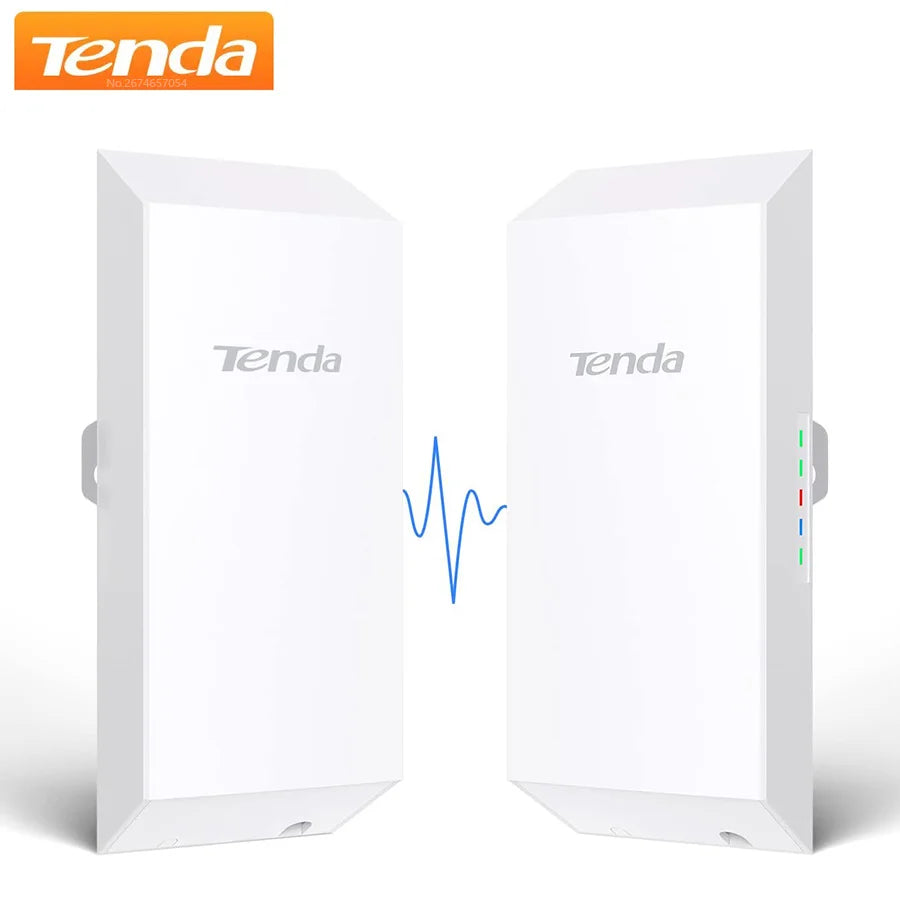

Tenda O1 300Mbps Wireless Bridge AP Security 2.4GHz 8dBi Outdoor Point to Point for Elevator Monitoring Video Surveillance Transmission

Description:

Outdoor wireless network bridge designed for video surveillance of elevators, crane towers, communities, factories, orchards, scenic spots and other scenes; the equipment works in the 2.4GHz frequency band, adopts 11n technology, and can provide up to 300Mbps wireless data transmission rate; built-in 8dBi high Gain directional antenna with stronger signal penetration. Based on pole-mounted design, it can be directly installed on walls and columnar objects. It is beautiful and elegant; it adopts industrial-grade high-grade waterproof and dust-proof plastic shell, which can work in all kinds of wind, rain and snow. And other outdoor environments.

Feature:

1. For video surveillance application scenarios, transparent bridge technology is adopted to allow the wireless bridge interface to forward all data packets, which mainly solves the problem that some NVRs cannot activate cameras and NVRs cannot manage IPC across network segments;

2. Built-in 8dbi high-gain directional antenna, the horizontal coverage angle is 60 degrees, the vertical angle is 30 degrees, the wireless transmission energy is more concentrated, and the transmission distance in the strong interference environment can reach 500 meters;

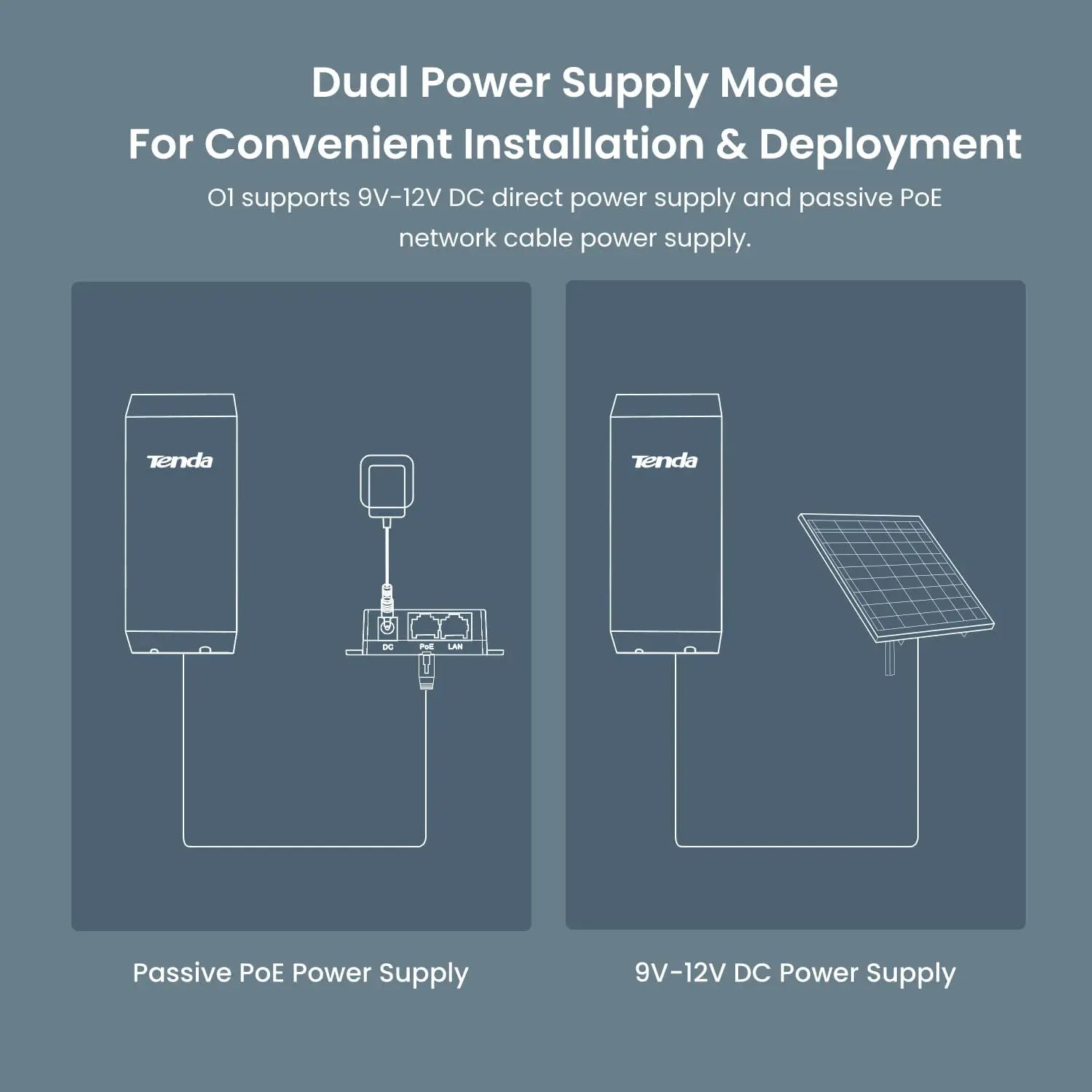

3. Support 9V-12V DC direct power supply and passive PoE network cable power supply. When the bridge is installed far away from the power socket, passive PoE network cable can be used for power supply. When the bridge is installed away from the power socket or the camera power supply line When the device is near, use DC direct power supply;

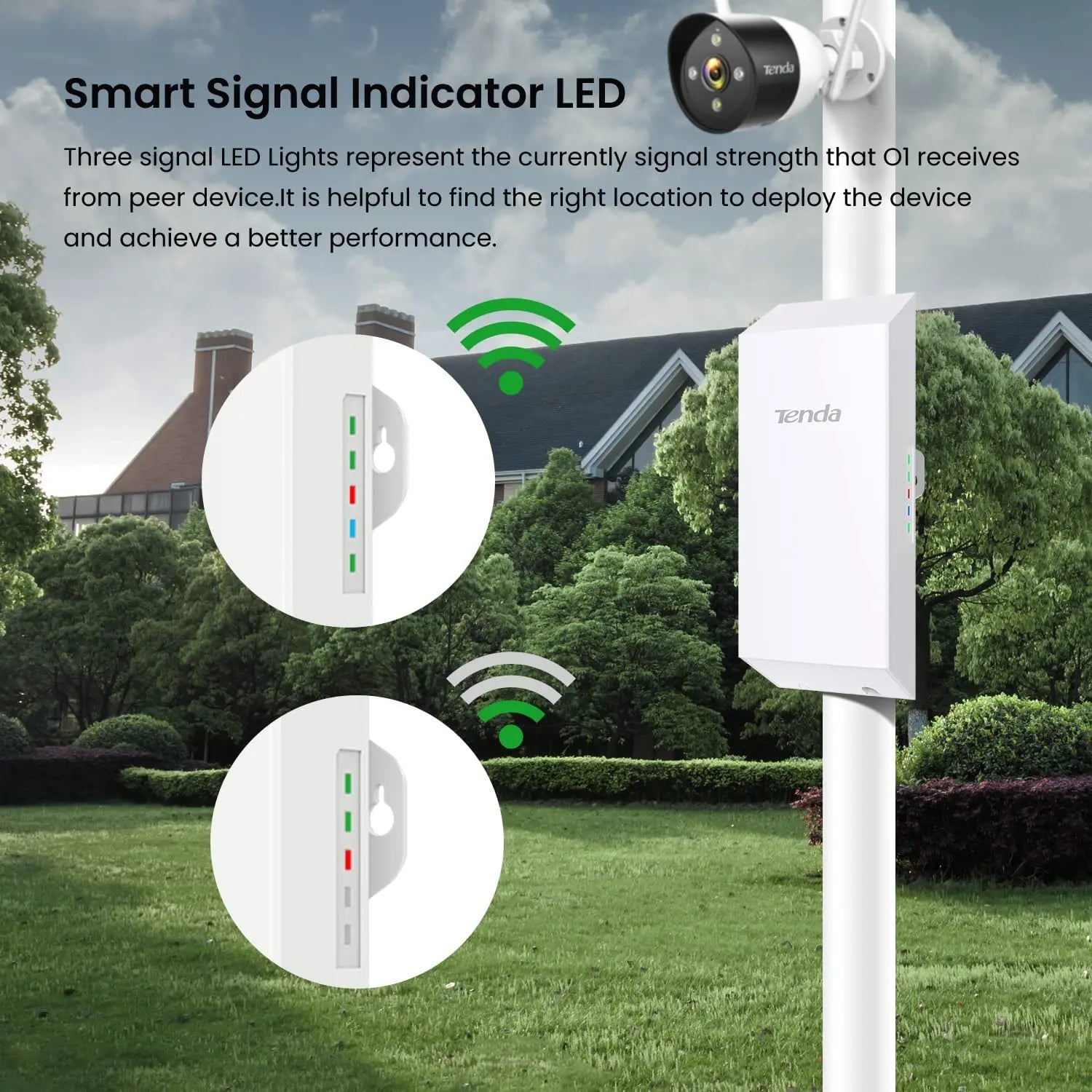

4. Multi-level signal strength indicator design is adopted, and different colors are used to display the signal strength of the current bridging peer device. When installing the equipment, you can find the best installation position and direction according to the on and off status of the signal indicator;

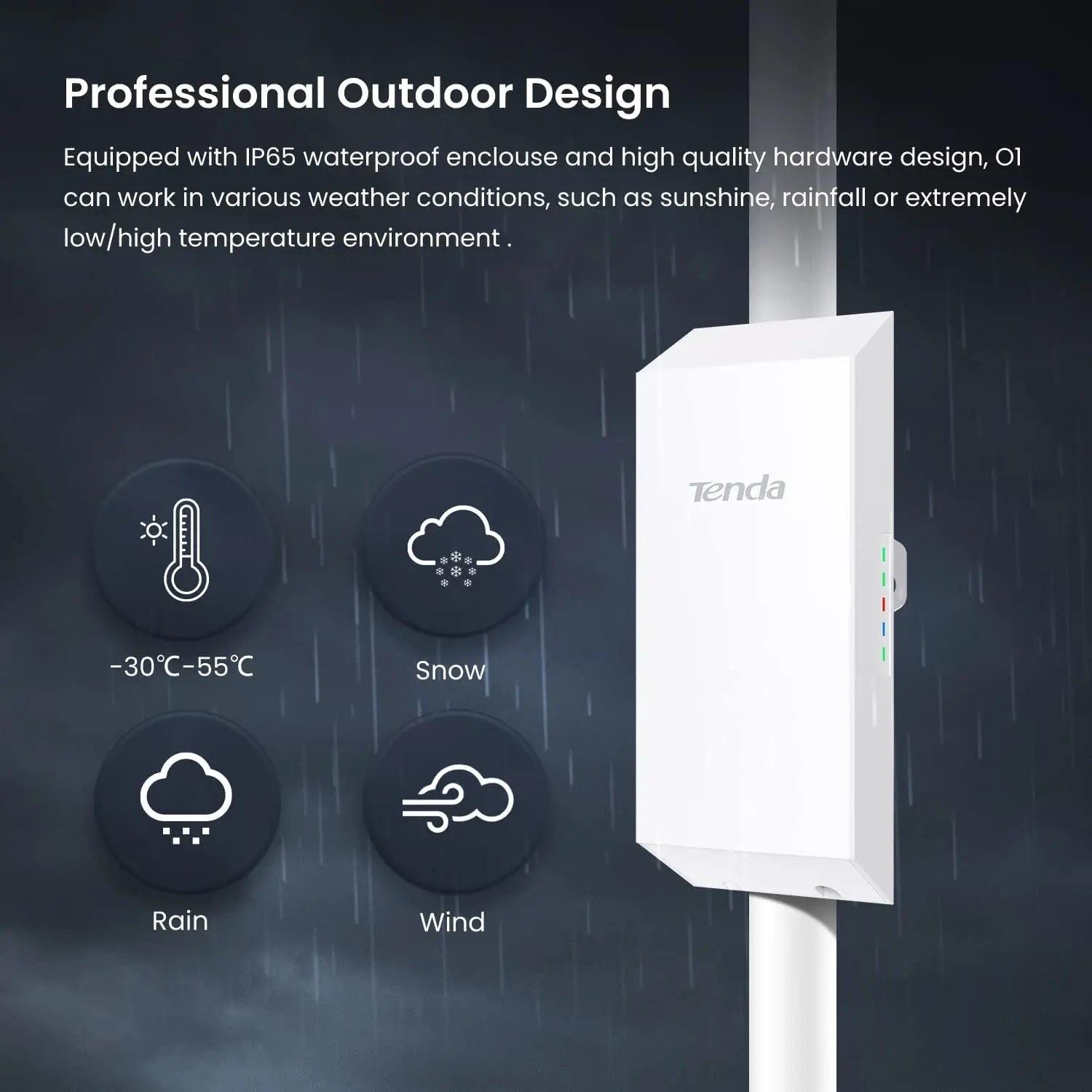

5. Adopting high protection grade shell design, dustproof and waterproof grade up to IP65; high specification electronic materials, outdoor working temperature range -30℃ to 55℃, suitable for various severe outdoor environments such as wind, rain and snow;

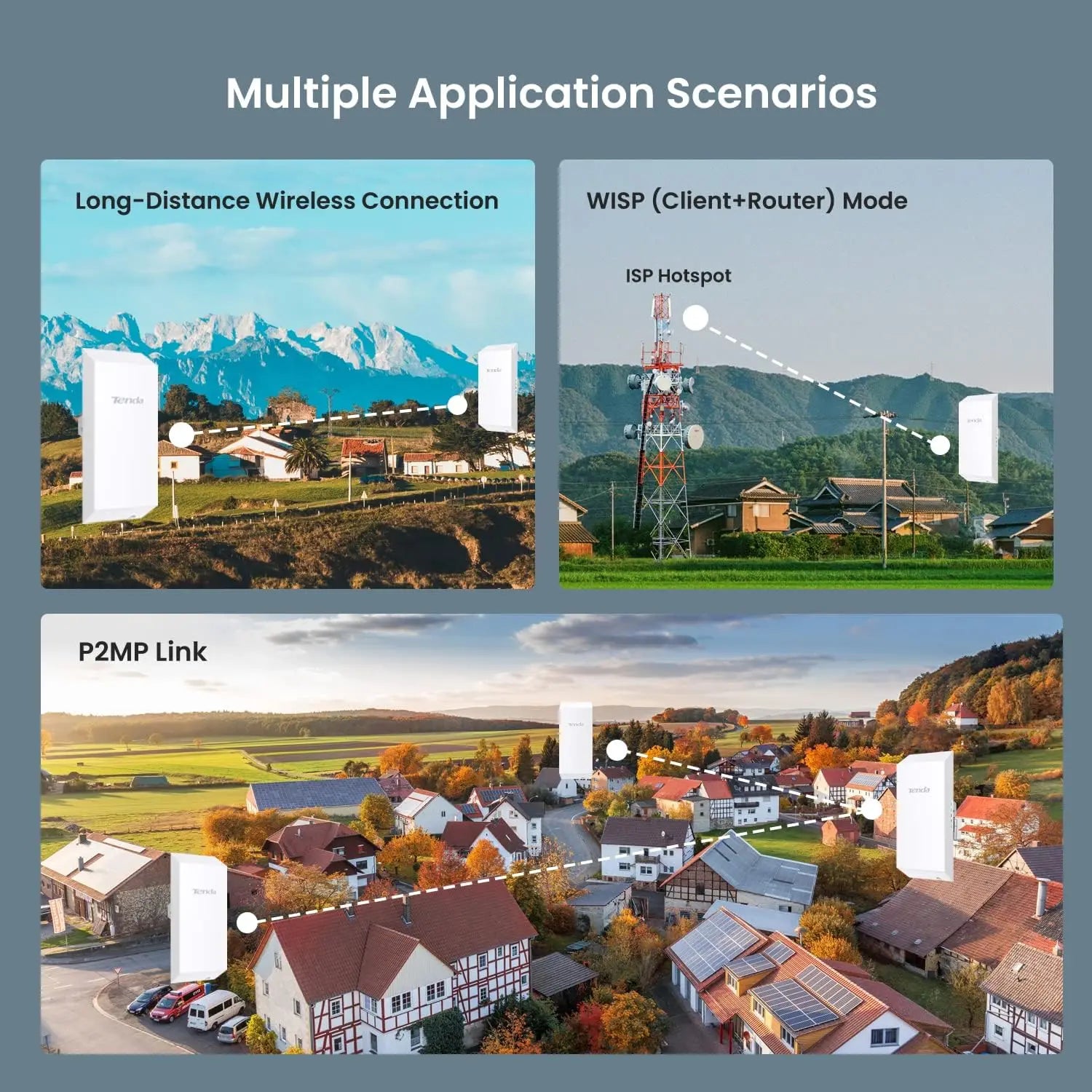

6. Support AP, client, wireless WAN working mode, can be used for long-distance point-to-point data transmission, video monitoring, wireless connection to ISP signal tower.

No.2674657054

Specification:

Working frequency band: 2.4GHz

Maximum access rate: 300Mbps

Ethernet interface: 1 10/100Mbps LAN port

Reset common button: 1

LED lights: 1 PoE/LAN, 1 WiFi, 3 signal strength indicators LED1, LED2, LED3

Antenna gain: 8dbi directional antenna

Antenna angle: horizontal angle 60 degrees, vertical angle 30 degrees

Input voltage: 9V-12V

Whole machine power consumption: 2.8W

Dustproof and waterproof grade: IP65

Input voltage range: 9V-12V

Power supply mode: DC power supply or passive PoE power supply

11b 1Mbps transmit power: 20dB

11n MCS7 transmit power: 17dBm

11b 1Mbps receiving sensitivity: -92dBm

11n MCS7 receiving sensitivity: -72dBm

Working mode: AP, client, wireless WAN

Transparent bridge: support

DHCP server: support

Diagnostic tools: support ping, Traceroute, signal scanning, Ping watchdog

Timed restart: support

Device management: support

Software upgrade: support

Device restart: support

Device restoration to factory settings: support

Configuration backup: support

Configuration restore: support

Log function: system log view

Wireless standard: IEEE 802.11b/g/n

SSID hiding: support

Number of SSID: 1

WPA encryption: support

WPA2 encryption: support

WPA2-PSK encryption: AES/TKIP

WPA-PSK encryption: AES/TKIP

WEP encryption: support 64/128 bit encryption

Wireless access control: support filtering based on for MAC address

Adjustable transmit power: support

AP isolation: support

WMM: Support

Client access restriction: Support wireless client RSSI threshold setting

Default setting:

Default login IP: 192.168.2.1

Default username: admin

Default password: admin

Working temperature: -30℃ to 55℃

Working humidity: 10%-90%RH (non-condensing)

Storage temperature: -30℃ to 70℃

Storage humidity: 10%-90%RH (non-condensing)

Product size: 194*80*68mm/7.64*3.15*2.7in

Application: monitoring video transmission in elevators/crane towers/communities/factories/scenic areas and other scenes

Notice:

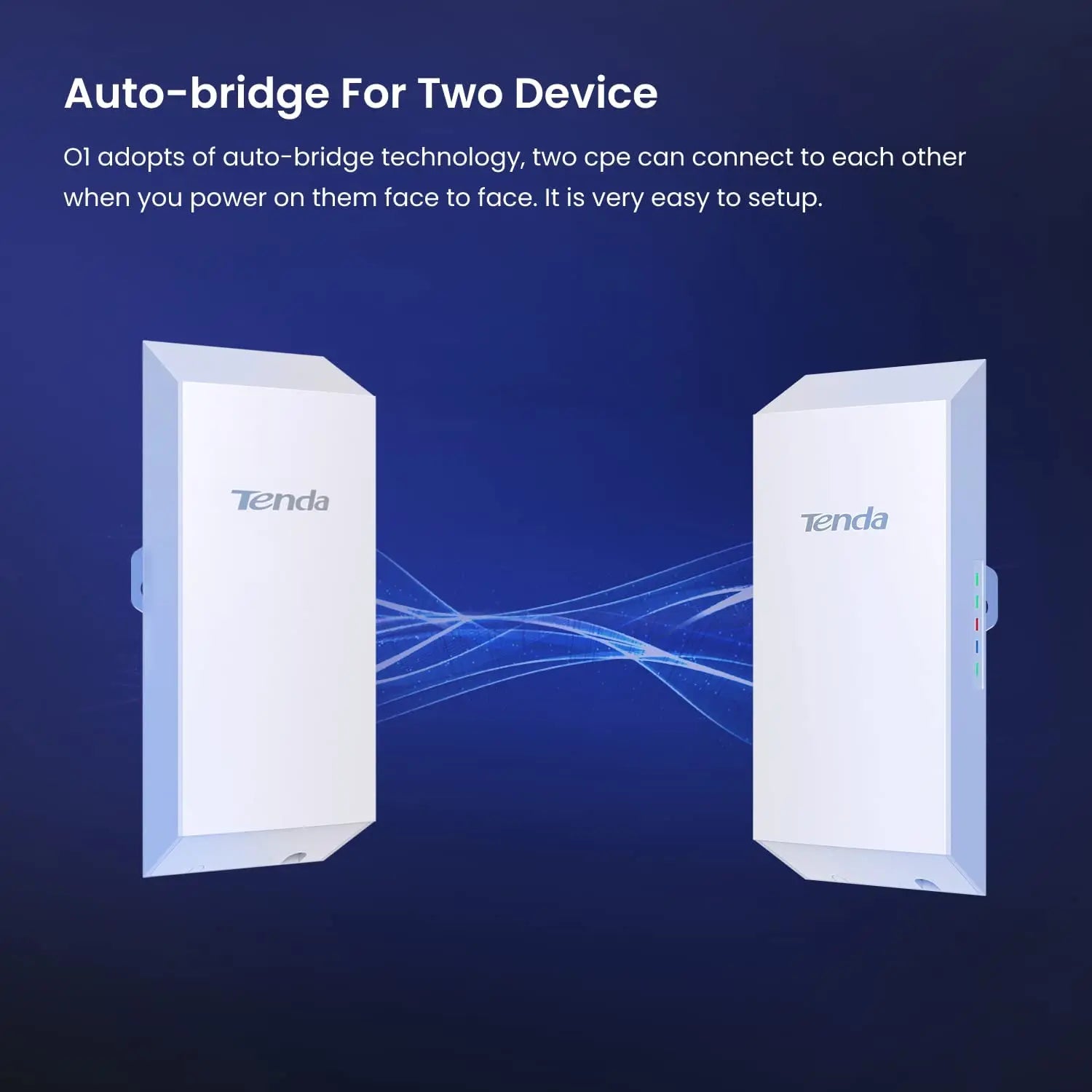

1. This product is a point-to-point wireless bridge. Generally, 2 of them are required to achieve point-to-point wireless bridging.

2. It can do 1 to 4, that is, 1 main network bridge and 4 sub-network bridges are used for wireless bridging;

3. It can transmit 500 meters, with a horizontal installation angle of 60 degrees and an upper and lower installation angle of 30 degrees;

4. This product can only be used as a wireless point-to-point bridge, and cannot be used as a wireless AP.
