Description
xSPECIFICATIONS
Application: Home
Brand Name: EDUP
Choice: yes
Frequency Band Class: Single-Band
Hign-concerned Chemical: None
LAN Ports: 0
Number of USB Interfaces: None
Origin: Mainland China
Standards And Protocols: Wi-Fi 802.11b
Wi-Fi Supported Frequency: 2.4G
Wi-Fi Transmission Standard: 802.11b
Wireless Communication Standard: 802.11.g
Wireless transmission rate: 1800M
With Modem Function: No

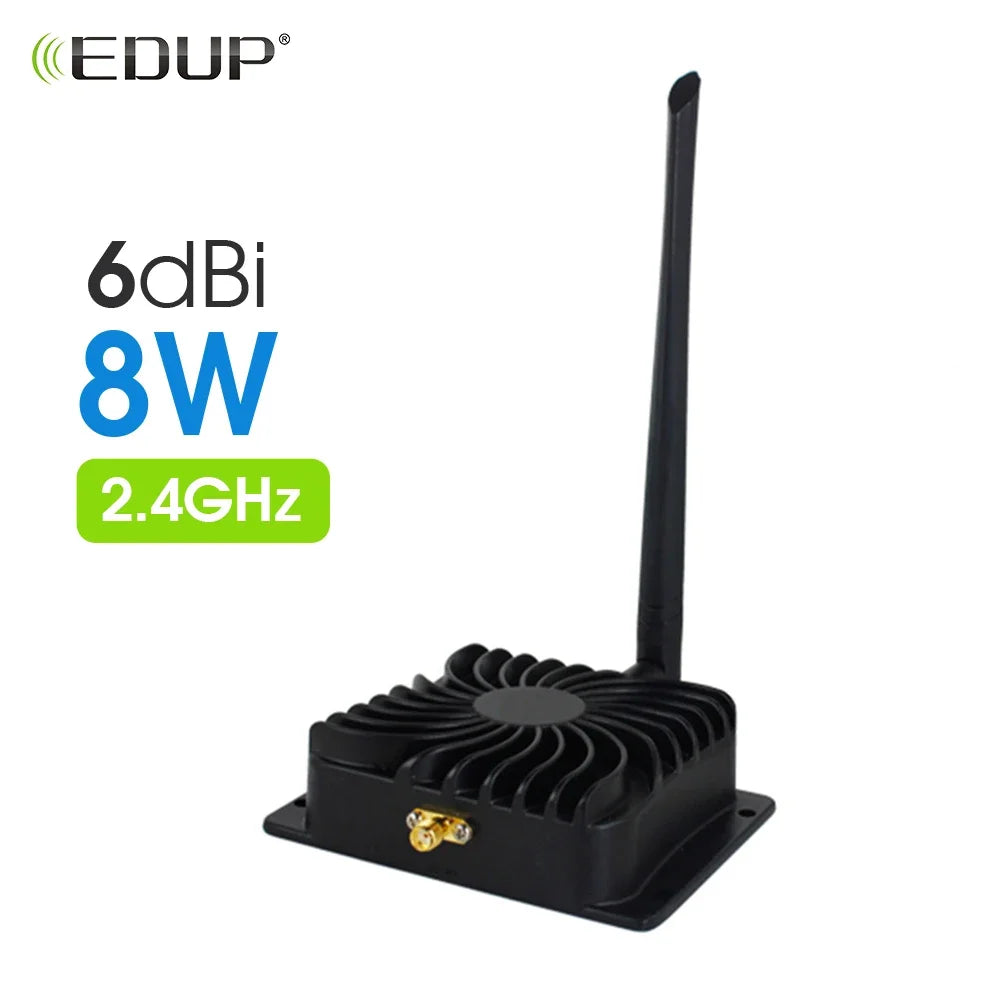

• High-Power 8W WiFi Booster :The EDUP 8W WiFi Booster provides strong signal amplification, ensuring reliable WiFi connection in areas with weak signal strength.
• 2.4G Wi-Fi Frequency Support :Operating on a 2.4G Wi-Fi frequency, this device ensures efficient data transmission and smooth internet access for all your devices.
• Wi-Fi 802.11b Standard :Adhering to the Wi-Fi 802.11b standard, this booster ensures compatibility with a wide range of Wi-Fi devices and networks.
• Remote Control Functionality :Equipped with remote control, this WiFi booster allows you to manage and control your wireless network from anywhere in your home.
• Long Range Extender :This wireless router acts as an extended range device, providing a wider coverage area for your WiFi network.
• Suitable for Home Use :Designed specifically for home use, this booster offers a hassle-free solution to improve WiFi signal strength and coverage.
Note:

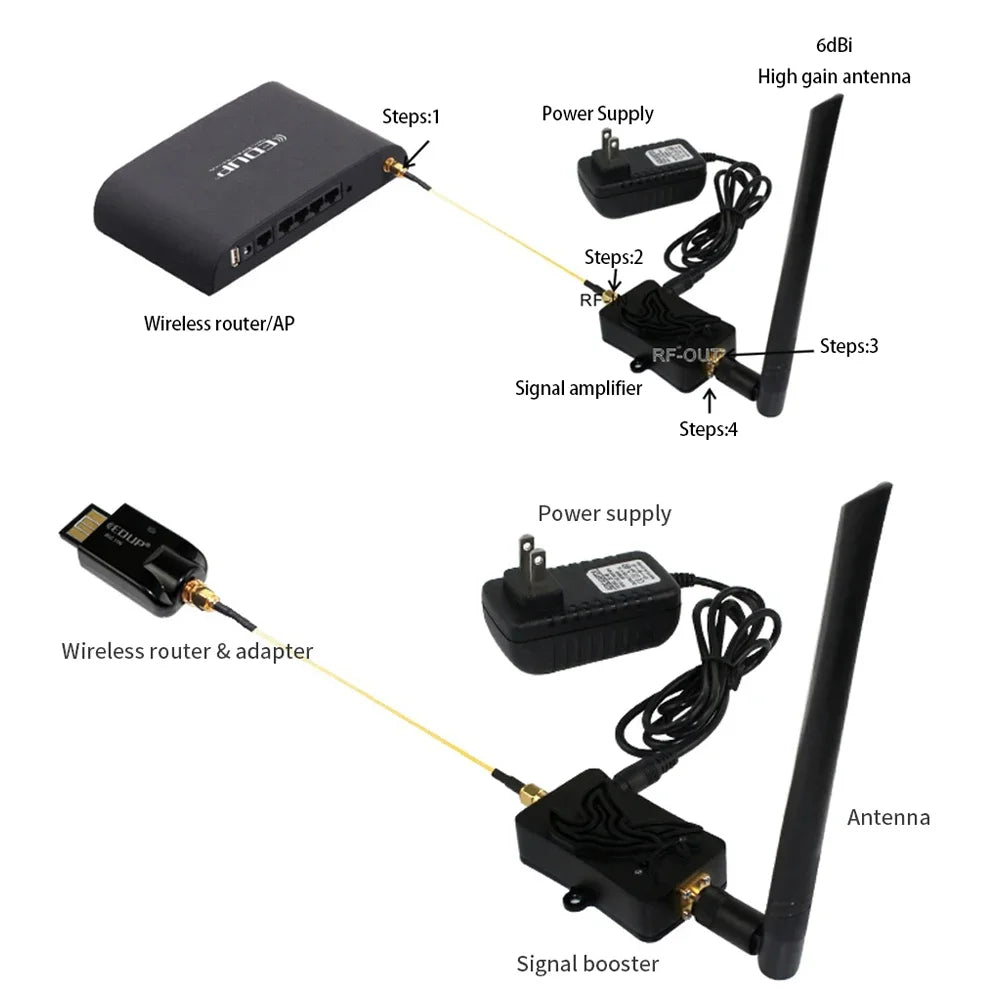

The item need connect with the Access Point Router together, then it can work and the Access Point Router is NOT included.Your device must be SMA antenna detachable Connector when used it , for example SMA detachable antenna router Please confirm that you device output power range is between 3dBm and 20dBm, only that the wifi signal booster could work well.
Features
1. The transmission gain is 15dB, which can increase the transmission power by 20 times and greatly expand the transmission distance
2. The noise coefficient is 2.5dB, which can improve the product's receiving sensitivity and greatly expand the receiving distance
3. The transmission power is 5000mW, which can greatly improve the coverage area of the product
4. Ultra wide power supply voltage input range of 6-18V, greatly convenient for engineering network deployment
5. Scalable to any 2.4G frequency band, with TDD working mode for product coverage
6. Plug and play, no software settings required

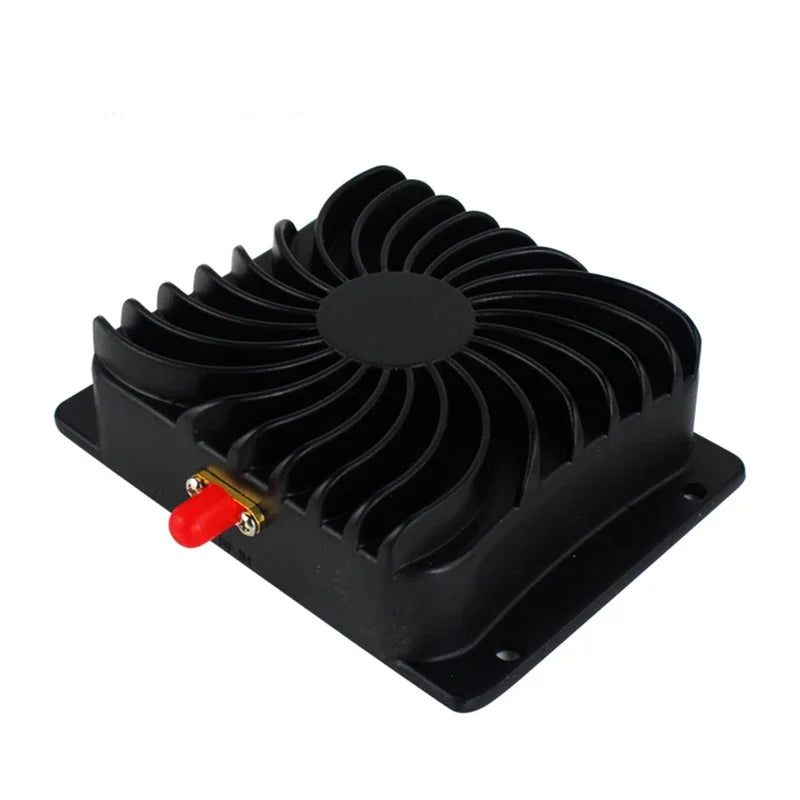

7. Fan shaped all metal shell greatly improves heat dissipation performance
Specifications
Working frequency band: 2.4~2.5GHz
Working voltage: 6-18V
Receiving gain: 25dB±1
Transmission gain: 15dB±1
Input power range: minimum 3dBm; Maximum 30dBm
Maximum output power (P1dB): 37dBm (5W)
EVM：3%@29dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
DC power consumption: 575mA@Pout 29dBm 12V
Noise coefficient: ＜ 2.5dB
TX/RX switch delay:< 1us

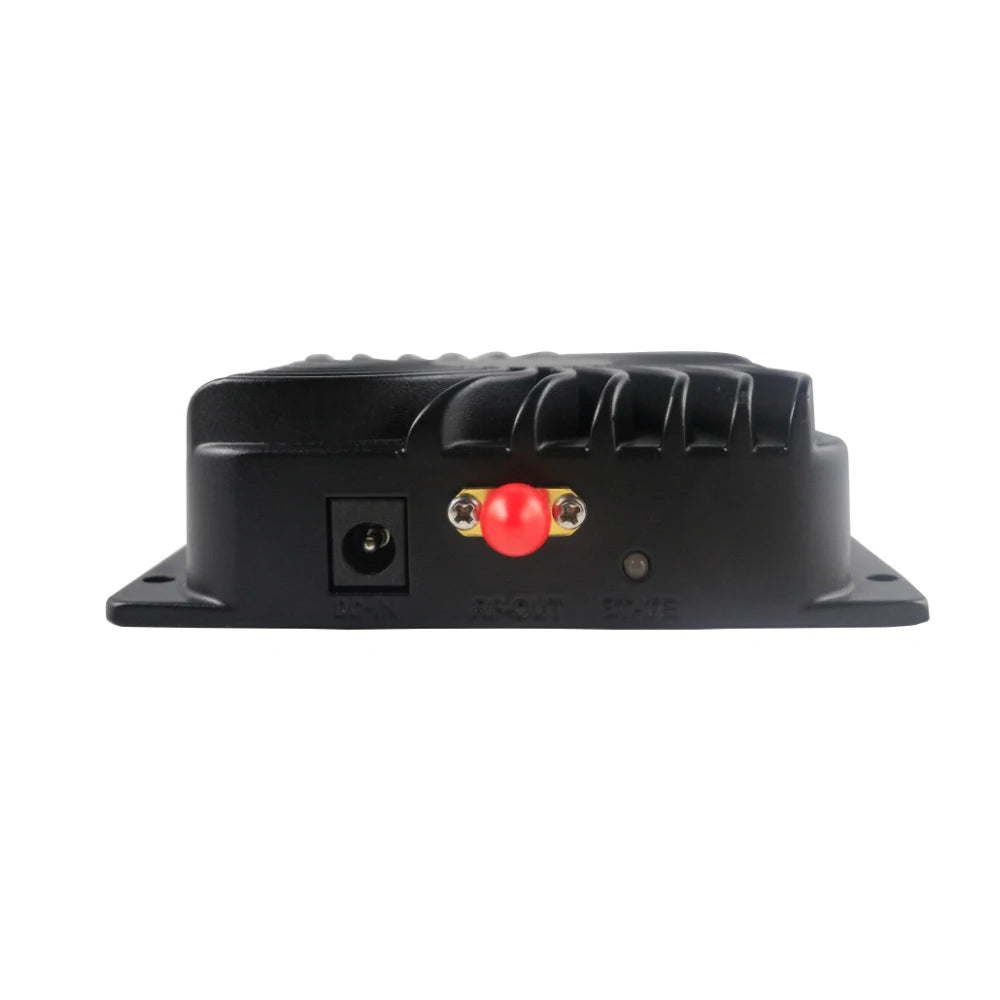

LED indicator light status: emission: green; Reception: red; Transmission and reception switching: Orange yellow (a composite color of green and red)
Working temperature:- 40℃～+70℃
Working humidity:< 95%RH

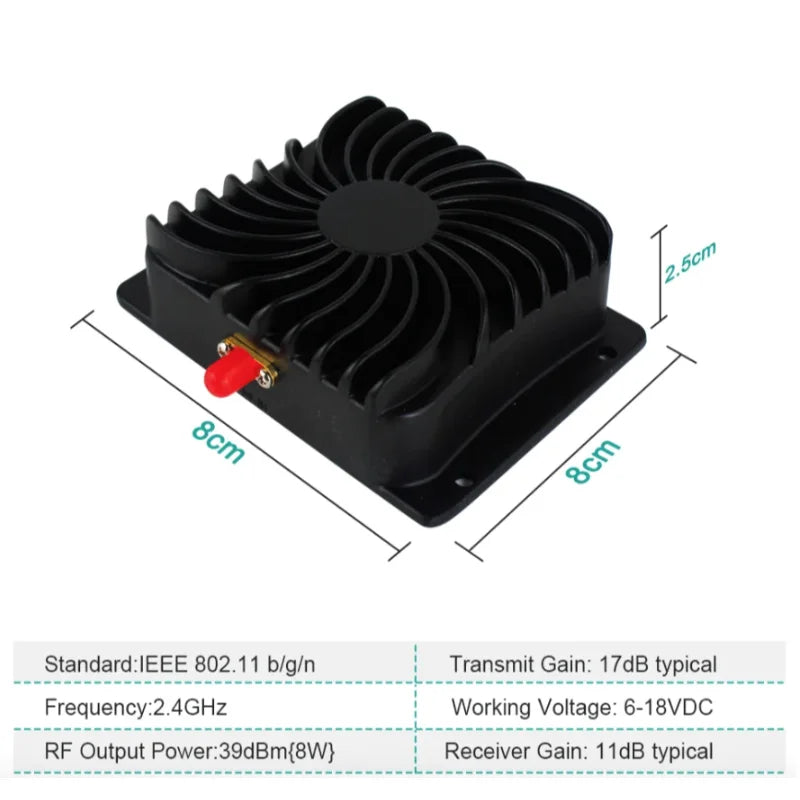

Size: 103.5mm × 96.5mm × 30.5mm
Net weight: 0.3Kg
Question & Answer
Q: What product is this wifi amplifier suitable for?
A: It is suitable for products with a signal frequency of 2.4GHz, router, handle, remote control, USB WIFI Adapter
Q: How far can we enlarge the distance?
A: The distance at which a signal can be amplified is influenced by various factors, and there is no definite distance. This calculation formula can be used to calculate the link budget: RSSI=P+Tx+Rx L-S Path loss: 2.4G: L=46+10 * n * lg (d)
20X the power improving the link quality and coverage of certified WLAN devices

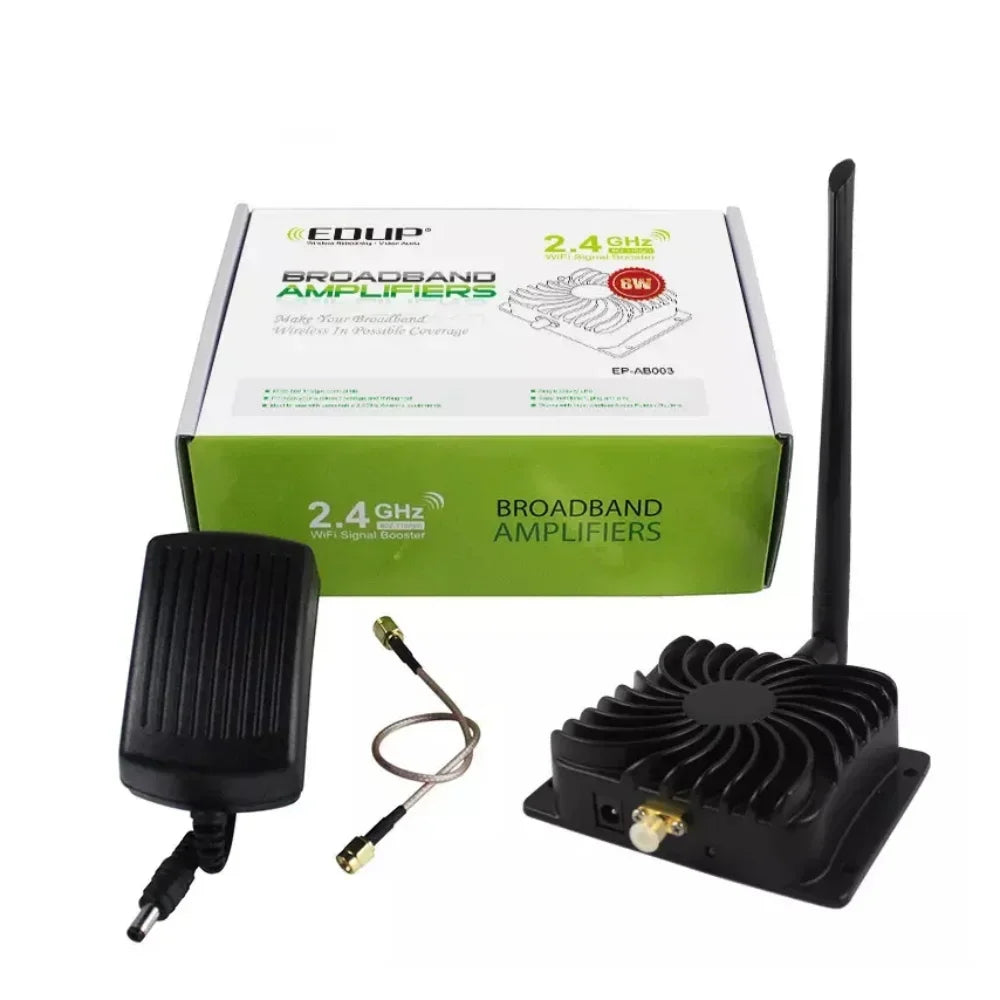

Package included:
1 x WiFi Amplifier
1 x Connector cable
1 x power supply
1 x Manual
