SPECIFICATIONS

Brand Name: OLOPKY

Certification: None

Choice: yes

Hign-concerned Chemical: None

Origin: Mainland China

semi_Choice: yes

Product Introduction:

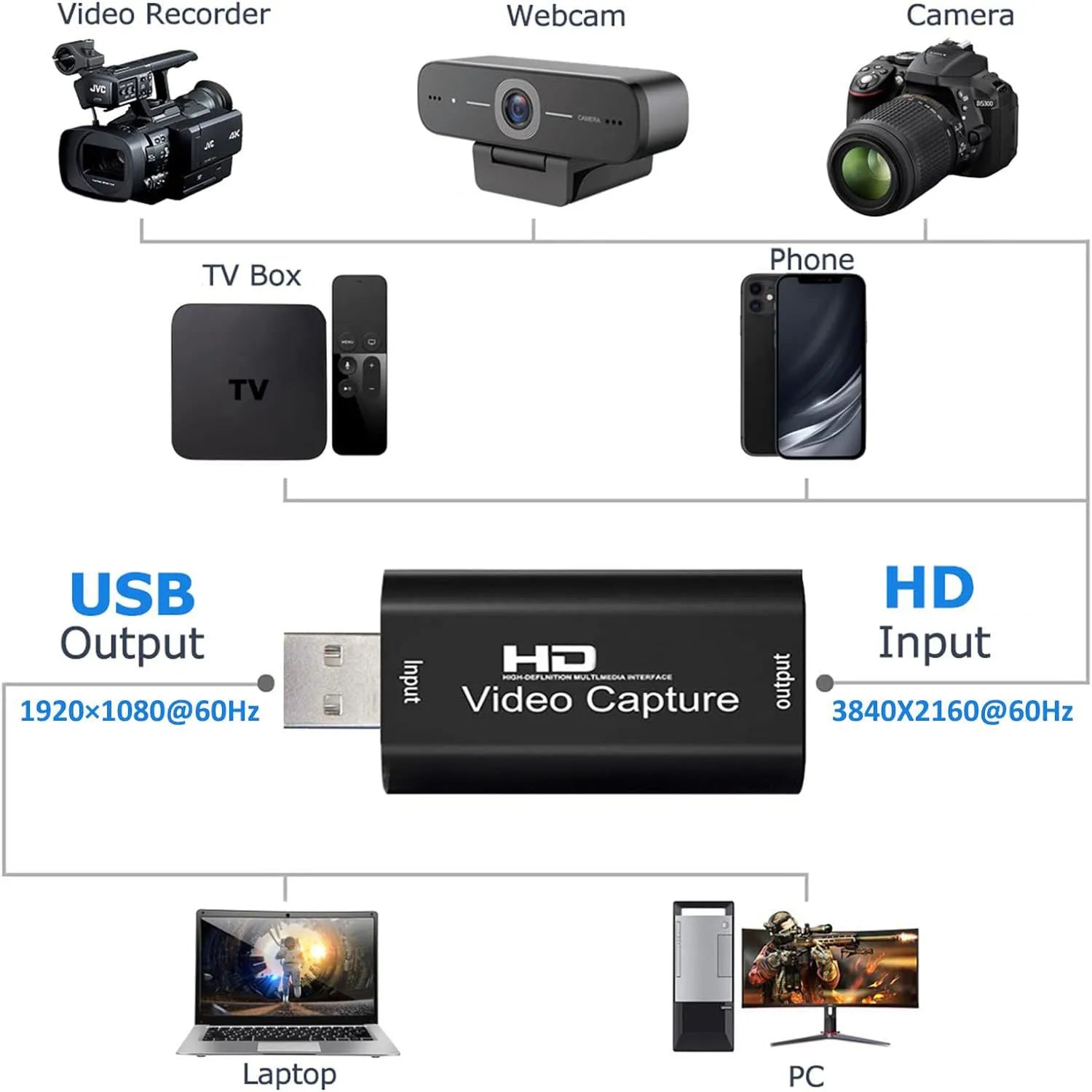

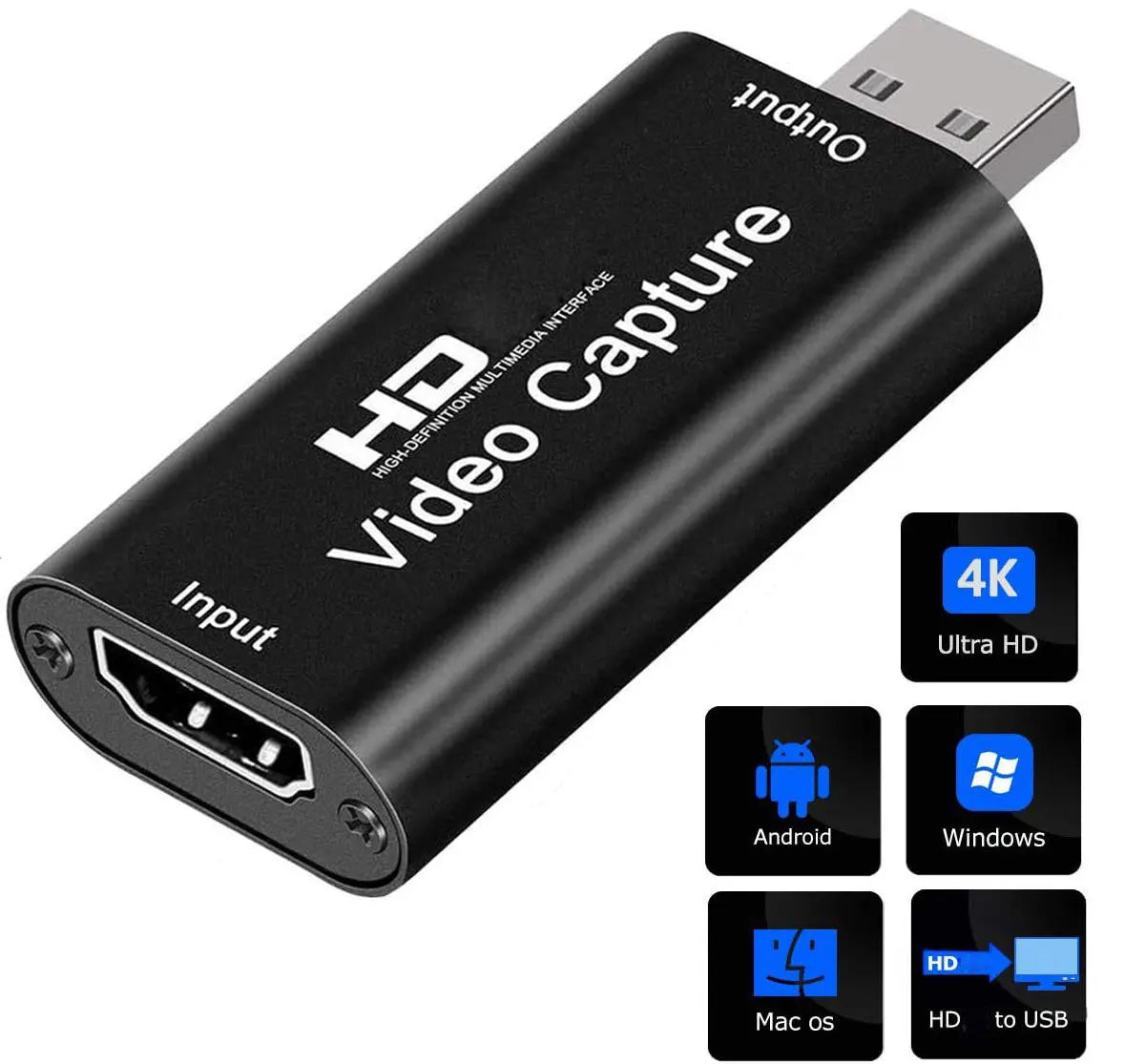

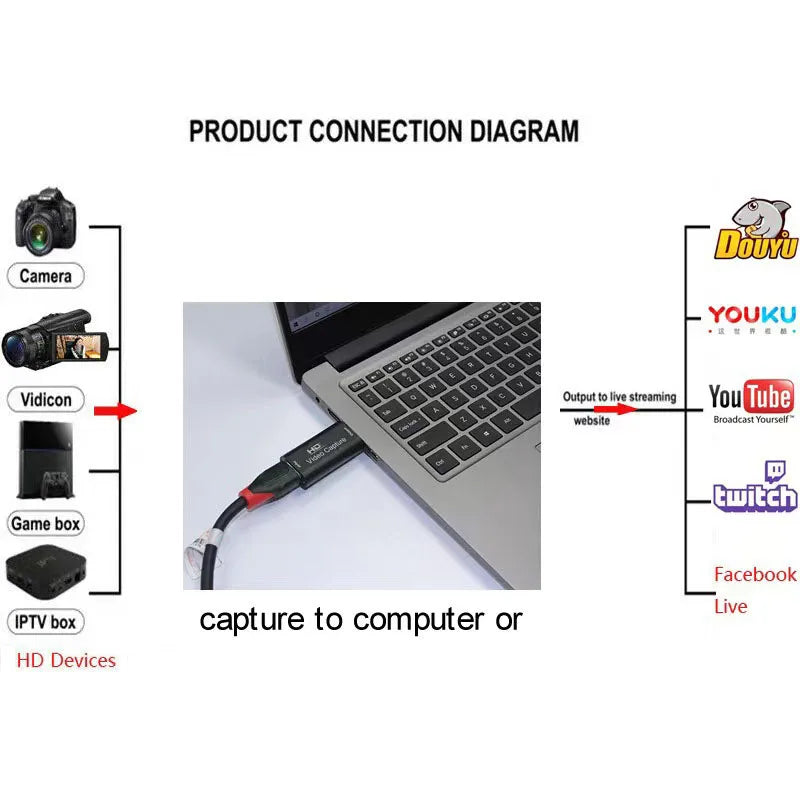

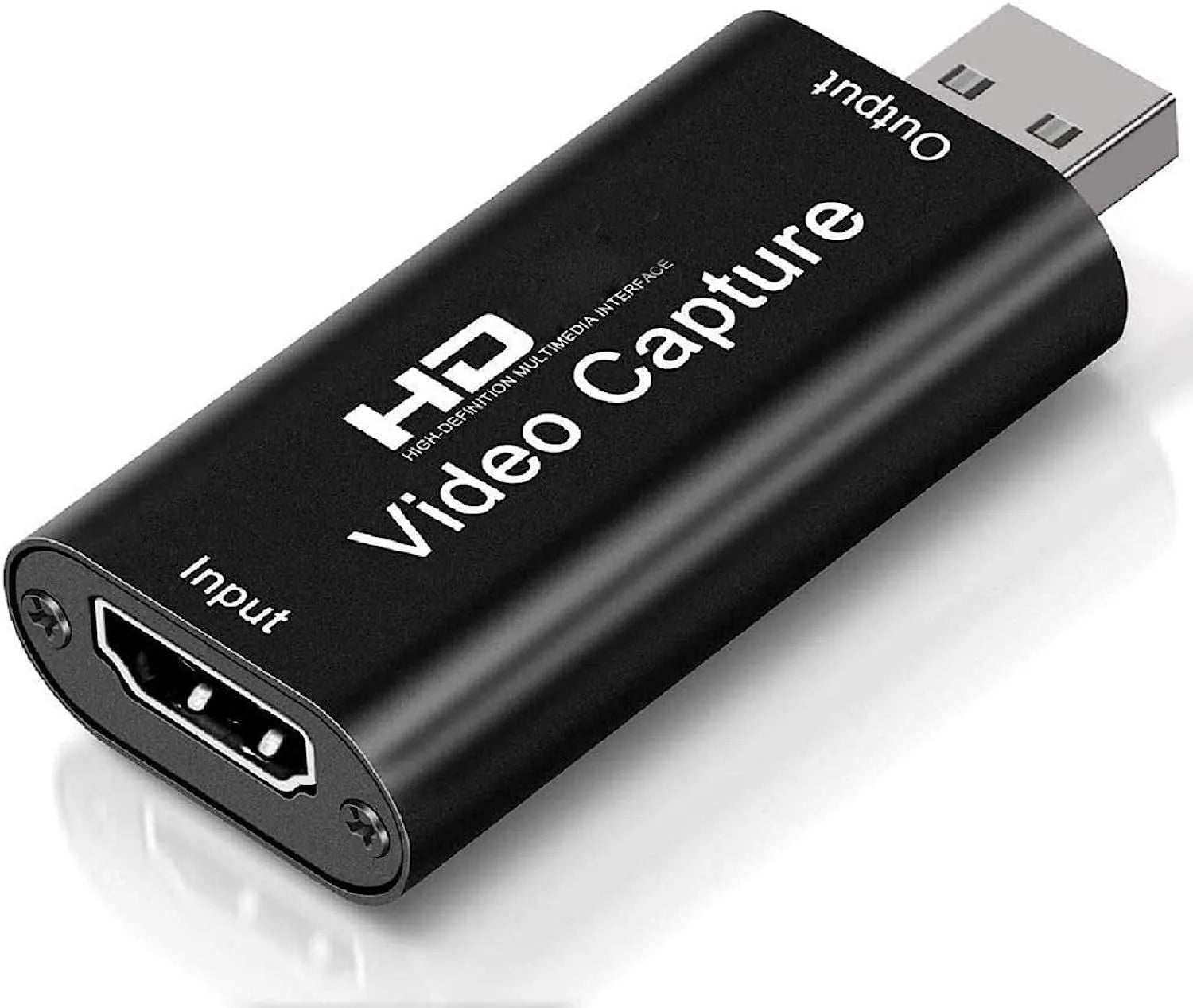

This USB 2.0 capture card can capture both HDMI video and audio simultaneously, and can transmit audio and video signals to computers and smartphones for preview and storage. Suitable for high-definition capture, teaching recording, medical imaging, etc.

Product features:

*Supports a maximum input resolution of 4K;

*Supports a maximum output resolution of 1080P;

*Supports 8/10/12 bit color depth;

*When using standard AWG26 cable, the input transmission distance can reach 15 meters (1080P and below resolution);

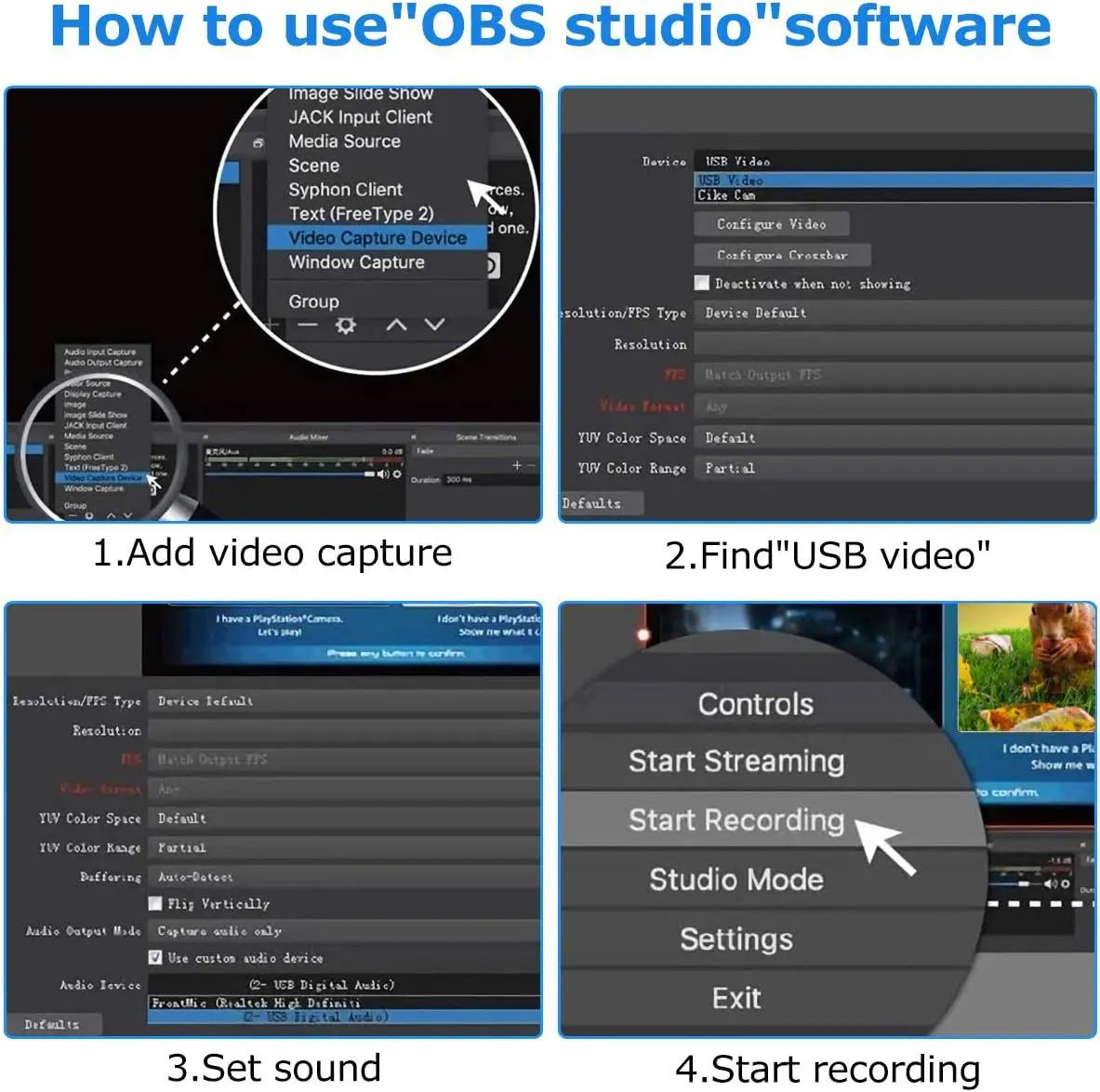

*Supports most collection software, such as VLC, OBS, Amcap, etc;

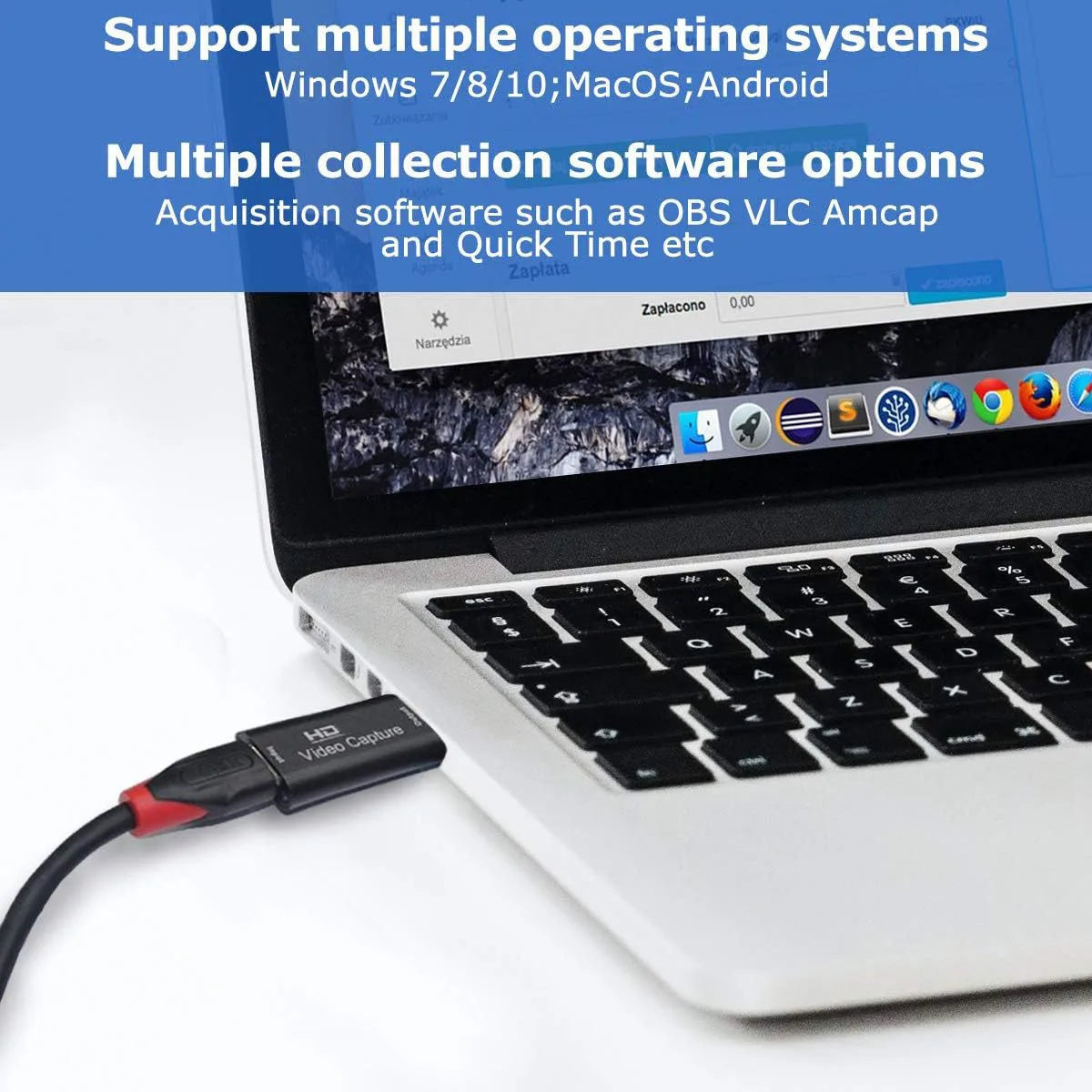

*Supports Windows, Android, and MacOS;

*Compliant with USB video UVC specifications;

*Compliant with USB Audio UAC specifications;

*No need for external power supply, compact size and easy to carry.

Specifications:

HDMI Resolution The highest input can support 4K

Video input format 8/10/12 bit color depth

Video output mode YUV、JPEG

Video output resolution Maximum output resolution 1080P

Support audio formats L-PCM

Input cable length......................................... ≤ 15 meters, AWG26 HDMI standard cable

Maximum operating current 0.4A/5VDC

Working temperature range (-10 to +55℃)

Dimensions: 64x28x13 (mm)
