SPECIFICATIONS

Brand Name: AMPCOM

Certification: RoHS

Choice: yes

Communication Mode: Full-Duplex

Function: LACP,QoS

Model Number: WAMZX-SWG0050-M

Number of Interfaces: 15

Origin: Mainland China

Package: Yes

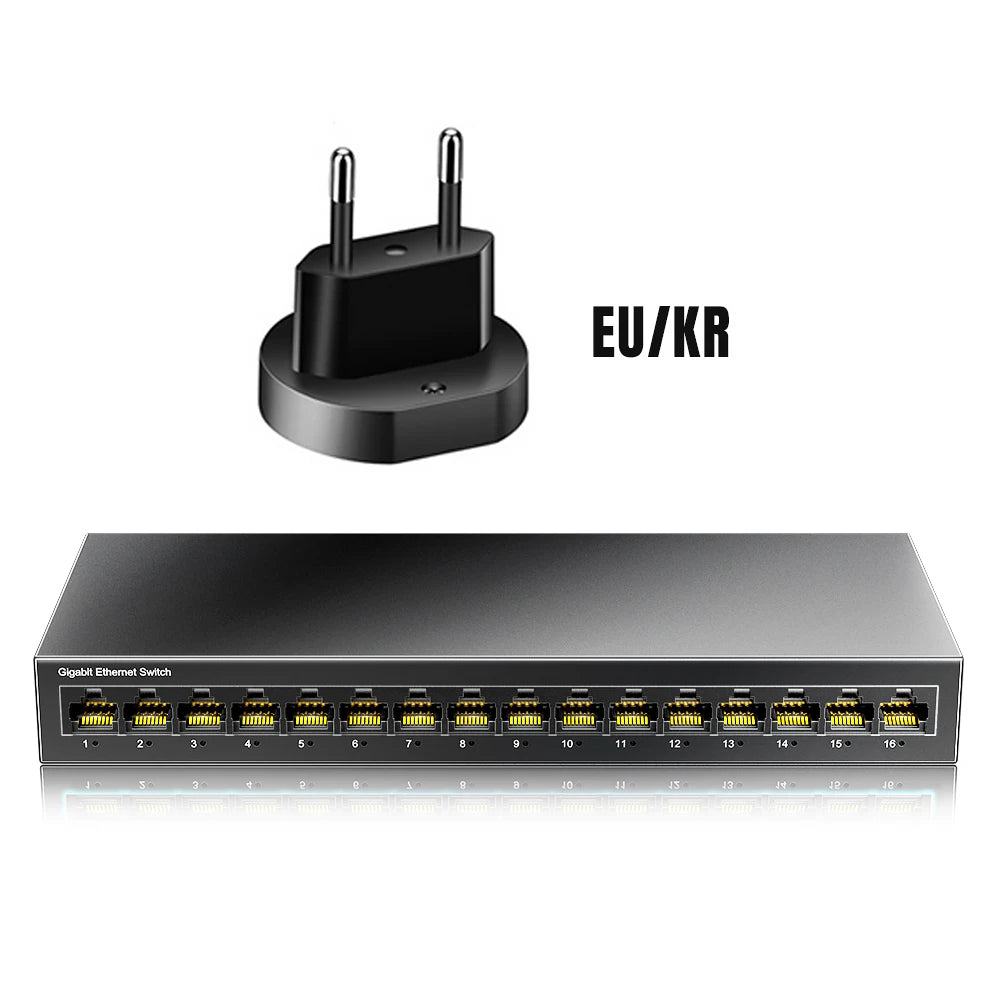

Plug Type: EU Plug

Switch Capacity: 32Gbps

Switch Type: Gigabit Switch

Transmission Rate: 10/100/1000Mbps

VLAN: yes

【Product Description】

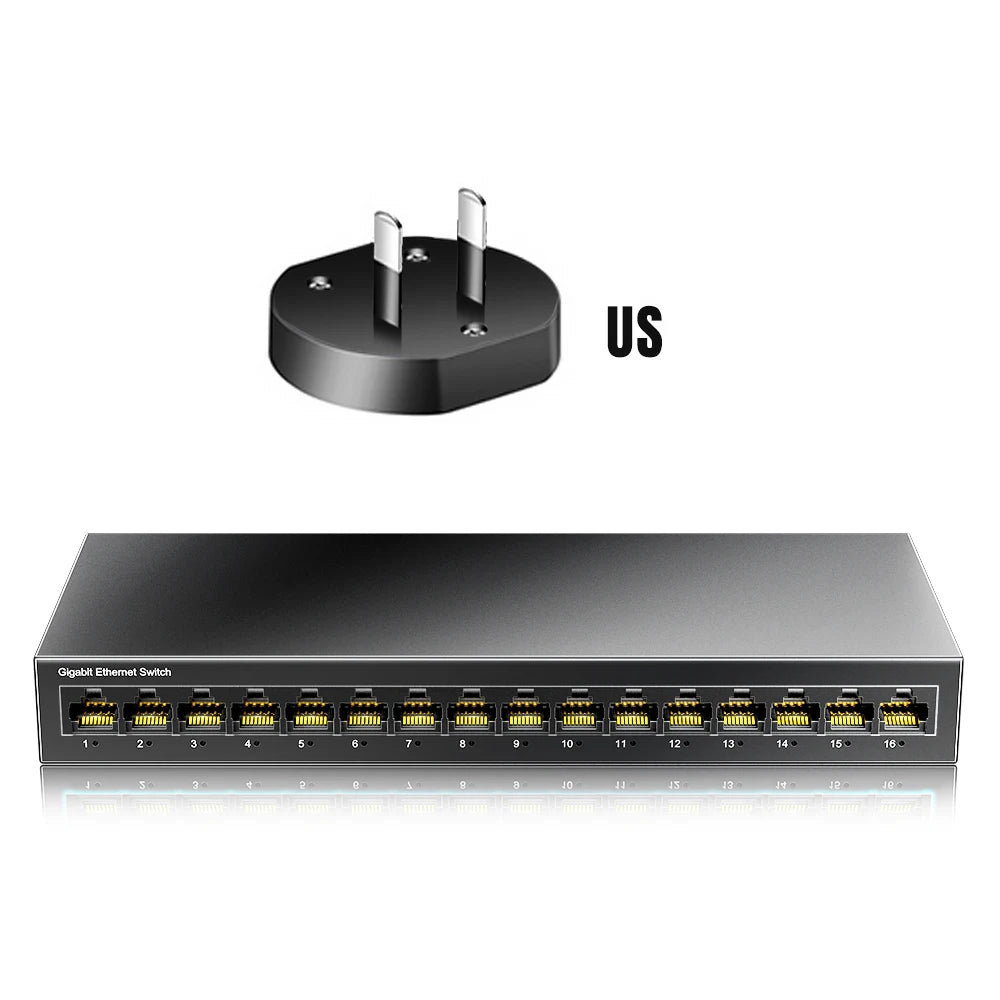

The 16-port Gigabit Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 16 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, easy to manage and maintain, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.

【Main Features】

16*10/100/1000M RJ45 Ports

Apply to IEEE802.3, IEEE802.3u, IEEE802.3ab standard

Ethernet port supports 10/100/1000M adaptive

Support auto MDI/MDIX

Panel indicators to monitor working status and help fault analysis

Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

Support port lightning protection Surge: common mode 4KV, differential mode 2KV; Electrostatic ESD: Air 8KV, Contact 6KV

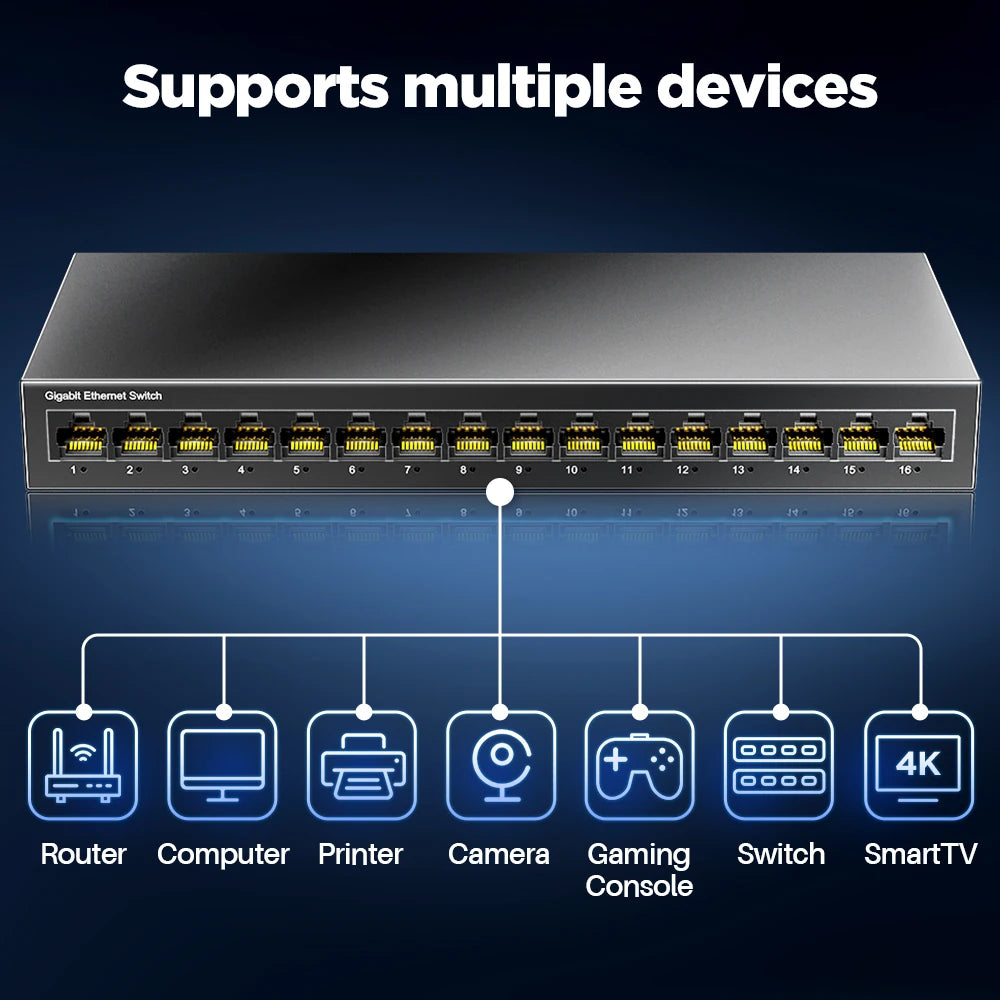

【Application Environment】

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.

Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries

Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

【Specifications】

I/O Interface

Power: DC 12V

Ethernet: 16*10/100/1000Mbps RJ45 Ports

Performance

Backplane bandwidth: 32Gbps

Pack Forwarding Rate: 23.8Mpps

Pack Cache: 4Mbit

MAC Address: 8K

Transfer Mode: Storage & Forwarding

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)

Network Medium :10Base-T: Cat3, 4, 5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or aboveUTP(≤100m)

Environment

Working Environment

Working Temperature：-0~40°C

Storage Temperature：-40~70°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~95%，non-condensing

Power Voltage Power adapter input voltage: AC 100-240V 50/60Hz

Power adapter output voltage: 12V 1A

Indication

Indicator Light: Port light

Port light On: Link connect normal

Off: Link off

Flash: Data transmission

Physical Specifications

Structure size

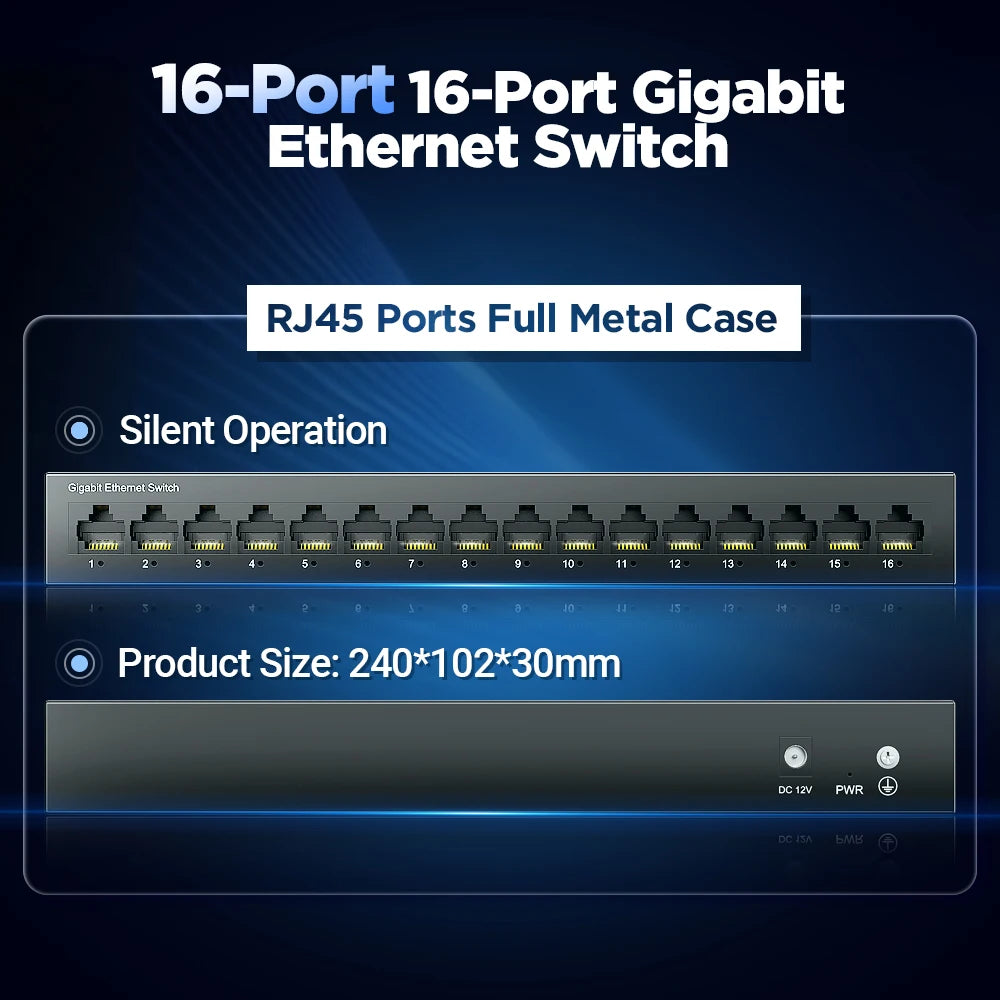

Product Size: 240*102*30mm

Package Size: 255*125*65mm

Product Net-Weight: 0.59Kg

Product Gross-Weight: 0.74Kg

Package List: Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Instructions 1 pc

16-Port Gigabit Easy Smart Switch

Easily expand your gigabit network and save energy

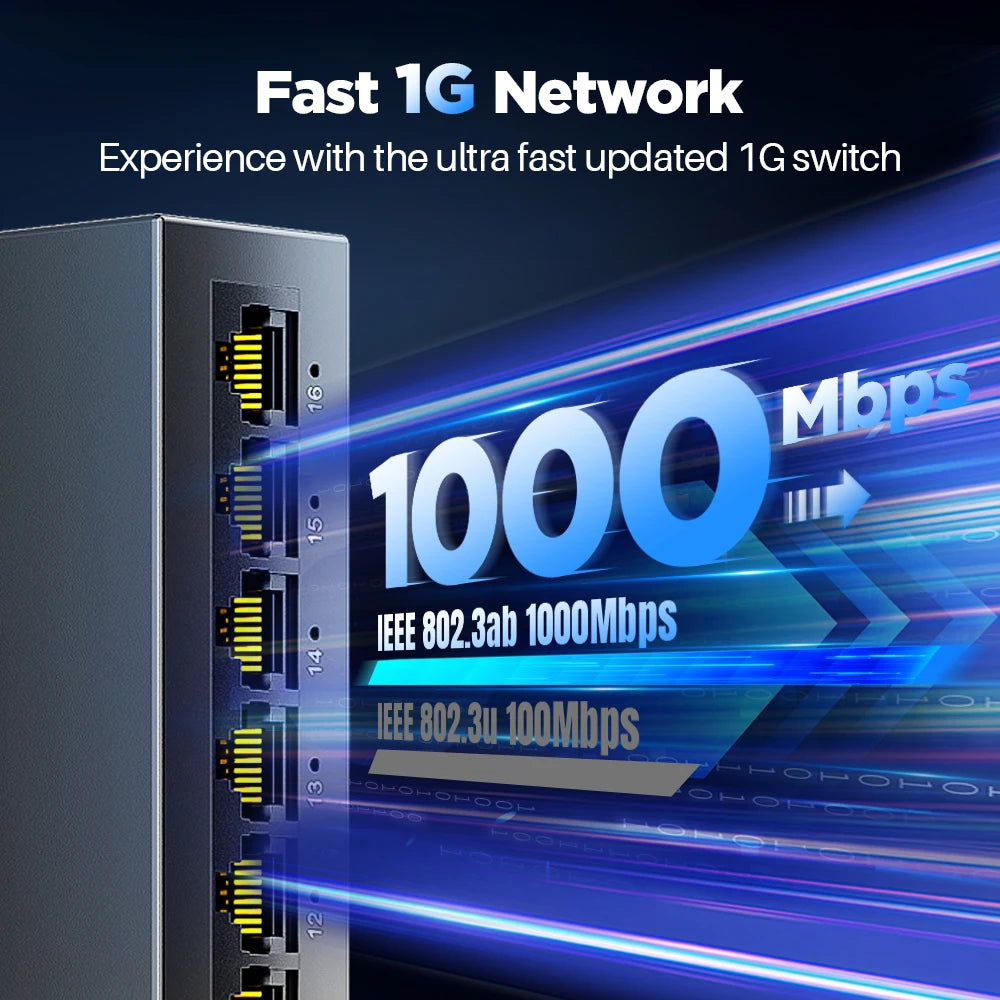

1000Mnps Speed

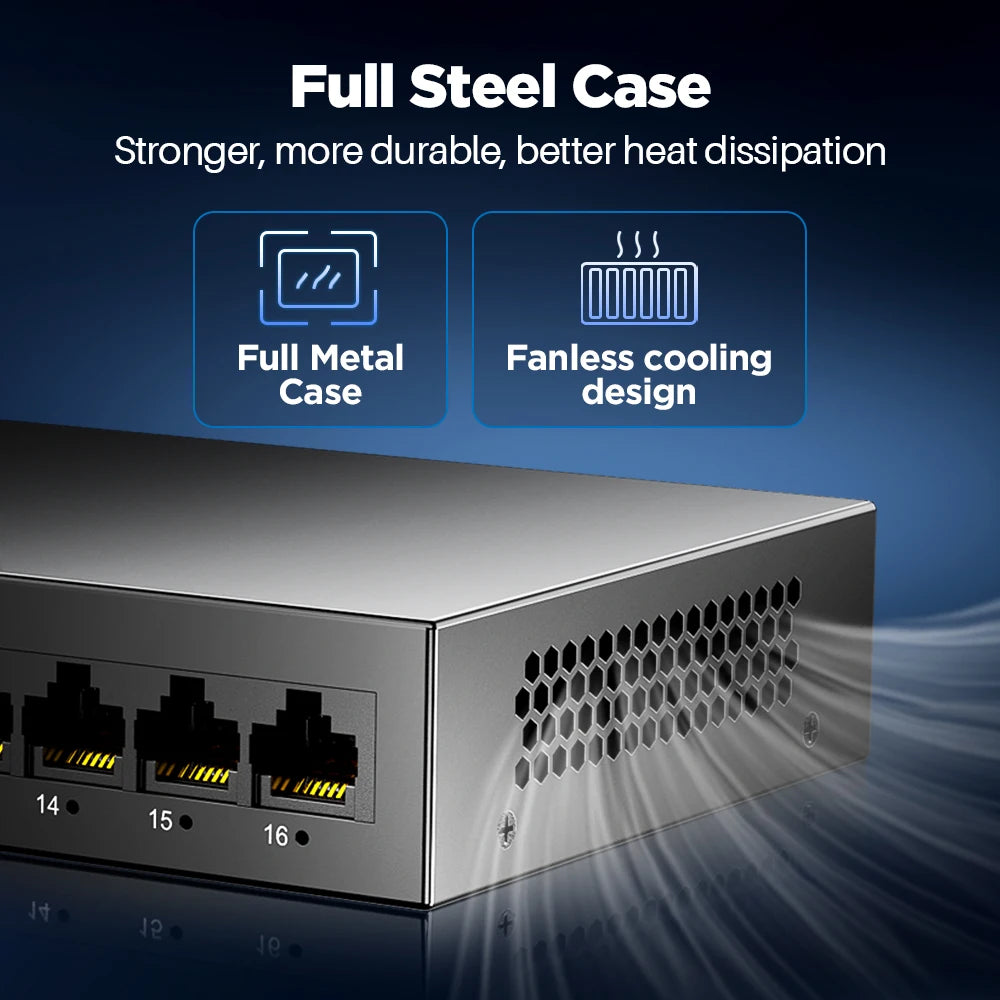

Full Metal Case/8 Port 1Gbps/Plug&Play/MDI/MDX

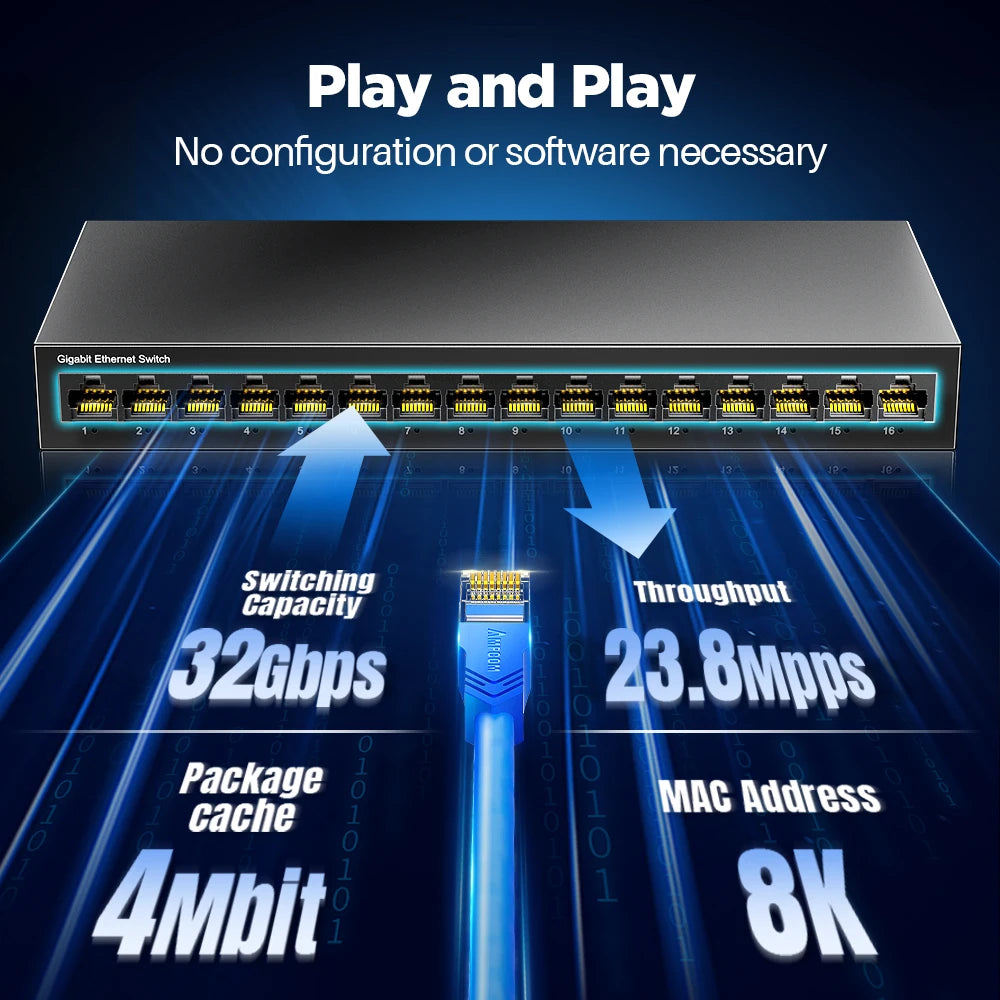

Plug&Play without Setting

Supports MDI/MDX without the need for configuration, automatically recognizes WAN/LAN

16 Full Gigabit Ports

1000Mbps WAN/LAN

High Switching Capacity

Provides faster data transmission, supports more devices, reduces the risk of network congestion, and facilitates large-scale network applications.

Strong Technical Capabilities

Years of experience make our products more reliable and trustworthy for use

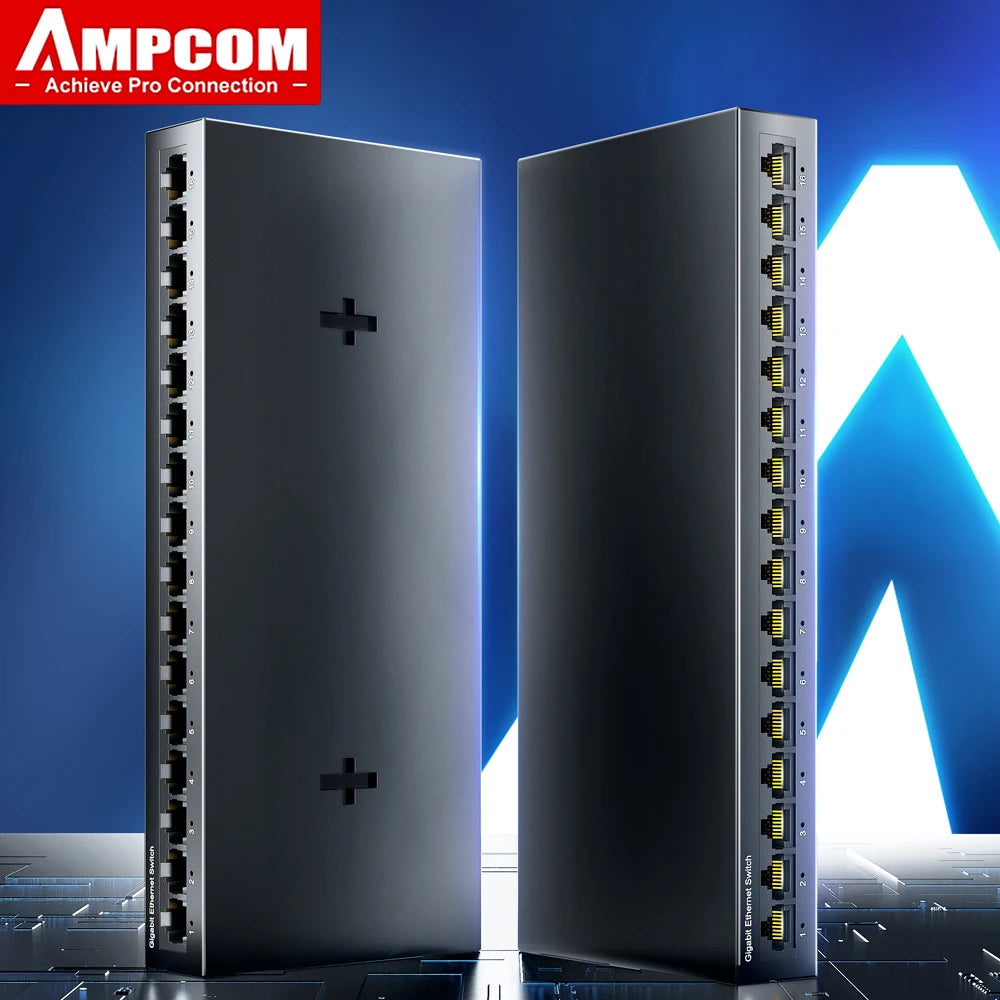

Supports Wall-mount Installation

Low Power Consumption,More Power Saving

Less than 2W standby power, reducing electricity bills

4KV Lightning Protection

Common mode 4KV, differential mode 2KV; Electrostatic ESD: Air 8KV, Contact 6KV

Product Size
